RF10-20mm F4 L IS STM Overview

Modern Design

The design of this lens is geared toward getting the job done efficiently with light weight, fast focusing, image stabilization, and a programmable control ring. There is even a petal-type lens hood built right into the barrel of the lens.

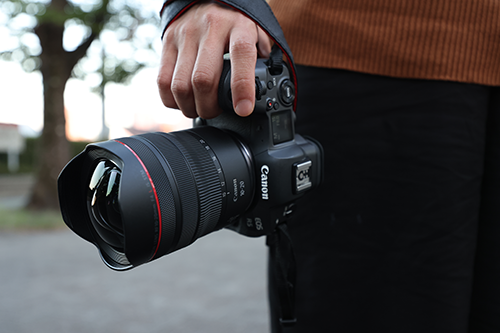

Incredible Dimensions

Capturing images at 10mm is already pretty special, but to do it in a lens that is lighter and smaller than even our own EF11-24mm f/4 L USM is quite a feat. The RF mount design allows for the possibility of this wider-angle lens range and is also a key factor in the size and weight reduction of the lens. This also enables the addition of IS (image stabilization) in a lens that otherwise might not be able to have it.

Excellent Image Quality

Again, thanks to the Canon RF lens mount, the RF10-20mm F4 L IS STM lens offers great optical quality. Its optical design includes one super UD element, three UD elements and three aspheric elements (including large-diameter aspheric and UD aspheric elements) as well as Subwavelength structure coating (SWC) and Air Sphere Coating (ASC) to reduce ghosting. On top of that, this lens features the same dust- and water- resistance found on L-series lenses with seals around the Control ring, focus ring, zoom ring, operation panel, and lens mount.

Make Some Movies

The RF10-20mm F4 L IS STM lens has a lot of advantages and features when it comes to video. First, you can take full advantage of the 10mm focal length on full-frame cameras, and you can even shoot 4K 60p without crop mode. If you are shooting on an APS-C camera, you’ll have access to wider angles than you ever have before (coverage equivalent to a 16-32mm lens). Another video advantage is the fixed f/4 aperture, minimizing exposure changes while zooming.



Optical Image Stabilization — Up to 5.0 stops1 of Shake Correction

For consistently sharp results, the RF10-20mm F4 L IS STM features built-in optical Image Stabilization, providing enhanced shake reduction for up to 5.0 stops¹ of shake correction. When paired with an EOS R-series camera that has In-Body Image Stabilization (IBIS), the Coordinated IS allows for up to 6.0 stops² of correction. Steady hand-held video, and incredibly sharp still images, are the benefits of this new RF ultra-wide-angle lens.

¹At focal length of 20mm with EOS R. Yaw/Pitch directions only.
²At focal length of 20mm with EOS R3. Yaw/Pitch directions only.

High-speed, Smooth and Quiet Autofocus

With any Canon EOS R-series camera, expect swift and positive autofocus. The STM leadscrew-type focus drive system is especially beneficial to video users, because of its combination of quiet operation and outstanding smoothness of focus changes during actual recording. And AF during still shooting is quick and equally quiet.

Get Close

With a minimum focus distance of just under 10 inches you can capture some really incredible ultra-wide-angle close-ups for a look unlike anything else.
