EOS R5 Mark II Overview

Digital interchangeable lens mirrorless camera

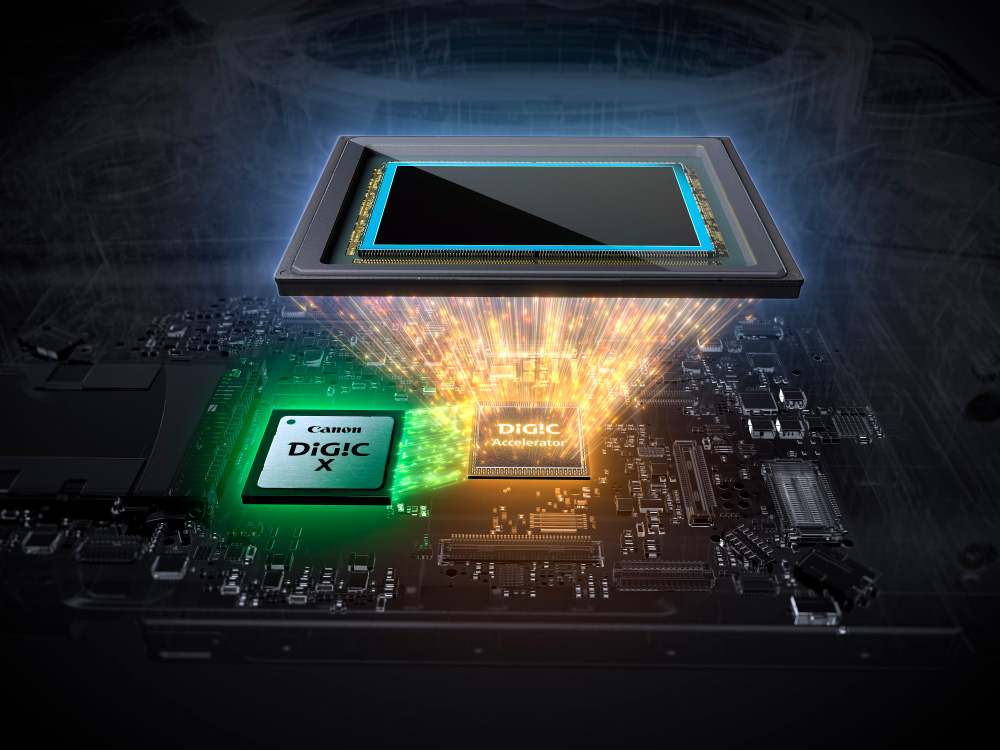

DIGIC X (with DIGIC Accelerator co-processor)

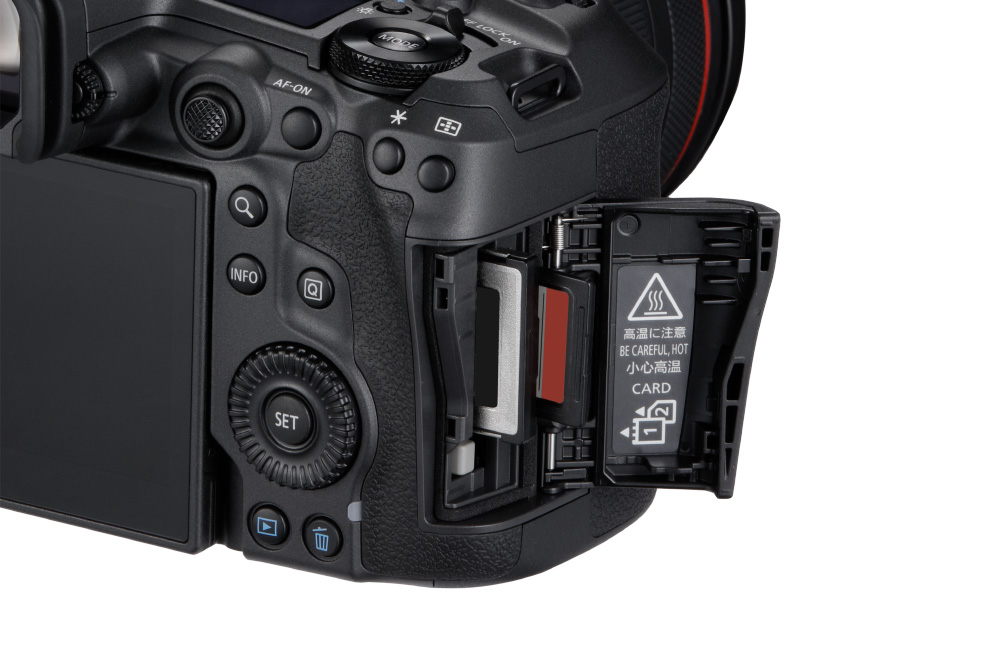

Card 1: CFexpress memory card

• Type B: Card slot
• CFexpress 2.0 and VPG400 supported
• Up to 2 TB is supported (a card exceeding 2 TB is handled as a card of 2 TB).

Card 2: SDXC/SDHC/SD memory card

• Compatible with UHS-II
• Eye-Fi cards and MultiMediaCards (MMC) not supported

Canon RF lens group (including RF-S lenses)

When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Canon RF mount

Canon designed full-frame back-illuminated stacked CMOS sensor
(compatible with Dual Pixel CMOS AF)

Approx. 45 megapixels

Approx. 36.0 x 24.0 mm

Approx. 4.40 μm square

Approx. 50.3 megapixels

3:2 (Horizontal: Vertical)

RGB primary colour filters

Installed in front of the image sensor, non-detachable

(1) Self Cleaning Sensor Unit

• Removes dust adhering to the low-pass filter.
• At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
• After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
• When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.

(2) Dust Delete Data acquisition and appending

• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
• The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
• Not available with RF-S/EF-S lenses. Setting may not be possible depending on the combination of functions (see the menu screen).

(3) Manual cleaning (by hand)

Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.

*Supports time difference information.

RAW: RAW / C-RAW

JPEG / HEIF: L / M / S1 / S2

Movies

• RAW
• XF-HEVC S YCC422 10bit
• XF-HEVC S YCC420 10bit
• XF-AVC S YCC422 10bit
• XF-AVC S YCC420 8bi

When a card is inserted, the following folders are created automatically. DCIM, CRM, XFVC, and MISC folders

Select folder, Create folder, Change folder name

DCF standards compliant.

The following folder is created automatically in the DCIM folder.

• Default: EOSR5. *This can be changed to any character string (5 characters).

XF-HEVC S / XF-AVC S format REEL_**** in XFVC folder

A normal movie file (MP4) is saved. REEL_**** in CRM folder

A RAW movie file (CRM) is saved. In each REEL_**** folder:

* Up to 999 files can be saved in one folder. When [Add News Metadata: On], an XML file is saved to the same location as the movie file in the card after movie recording.

XF-HEVC S / XF-AVC S format

News Metadata is saved in the XMLTAG folder in the currently selected card.

* Up to 100 XML files can be saved in one XMLTAG folder.

*1: When MP4 movie is recorded with [Add CP file: Enable], “.CPF” file will be created.

NewsML-G2 standard compliant

When [Add News Metadata: On] is set, news metadata (XML file) of the movie associated with the set news metadata is generated.

* The name of the generated XML file is the same as the name of the movie file (only the extension differs).

* The news metadata (XML file) is saved to the same location as the movie file in the card after movie recording.

*When news metadata has been set from Content Transfer Professional, the news metadata set from the card inserted in the camera is disabled (that of the app has priority).

Continuous numbering: The numbering of captured images continues even after you replace the card.

Auto reset: When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.

Resets the file number to 0001, and creates a new folder automatically.

* When manually resetting the file number, folders can also be renamed.

Continuous numbering: The numbering of captured clips continues from the last recorded clip even after you replace the card.

Auto reset: When you replace the card, the numbering will be reset to start from 001. If the new card already contains clips, the numbering will continue from the last recorded clip in the card.

Card 1: CFexpress memory card

• Type B: Card slot
• CFexpress 2.0 and VPG400 supported
• Up to 2 TB is supported (a card exceeding 2 TB is handled as a card of 2 TB).

Card 2: SDXC/SDHC/SD memory card

• Compatible with UHS-II
• Eye-Fi cards and MultiMediaCards (MMC) not supported

Access lamp lights up in red or blinks in red

The error warning is displayed in the viewfinder and on the screen

Shutter release lock

Normal formatting

Low-level formatting

Unlimited

Supported

Supported

RAW: RAW / C-RAW

JPEG / HEIF: L / M/ S1 /S2

HEIF recording is available when [HDR shooting (PQ): HDR PQ] is set.

* Conforms to MIAF (multi-image application format) standards.

RAW images conforming to the CR3 format that have smaller file sizes.

* RAW offers better image quality than C-RAW.
* Conversion from RAW to C-RAW or C-RAW to RAW is not possible.
* Simultaneous recording of RAW and C-RAW is not supported

Not supported

The degree of compression is user-configurable in a range of 1–10 for each image size
(L, M, S1, and S2).

* The number of shots available at the specified JPEG or HEIF image quality level is displayed on the camera.

Full-frame / 1.6x (crop) / 1:1 (aspect ratio) / 4:3 (aspect ratio) / 16:9 (aspect ratio)

* Switching between [Shooting area: Masked/Outlined] is possible

* 1: Angle of view of approx. 1.6 times the indicated focal length.
* Values for recorded pixels are rounded off to the nearest 100,000th.
* Colored cells indicate an inexact proportion.
* RAW/C-RAW images are generated in [3:2], and the set aspect ratio information is appended to the images.
* JPEG/HEIF images are generated in the set aspect ratio.
* These aspect ratios (M / S1 / S2) and pixel counts also apply to resizing.

*1: When connected to an HDR compatible monitor

Simultaneous recording of any combination of RAW/C-RAW images and JPEG/HEIF images is supported.

Available

* Can be assigned to a preferred button in [Customize buttons for shooting].

Not Supported

*1: Number of shots available and maximum burst for CFexpress cards apply to 325 GB CFexpress cards conforming to Canon testing standards.
*2: Maximum burst for SD cards applies to 128 GB UHS-II SD cards conforming to Canon testing standards.
*3: When [HDR shooting (PQ): Disable] is set.
*4: When [HDR shooting (PQ): HDR PQ] is set.
* Maximum burst as measured under conditions conforming to Canon testing standards (One-shot AF, High-speed continuous shooting+, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F)
* File size, number of shots available, and maximum burst vary depending on shooting conditions (including remaining battery level, battery temperature, cropping/aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Functions).

*1: Number of shots available and maximum burst for CFexpress cards apply to 325 GB CFexpress cards conforming to Canon testing standards.
*2: Maximum burst for SD cards applies to 128 GB UHS-II SD cards conforming to Canon testing standards.
*3: When [HDR shooting (PQ): Disable] is set.
*4: When [HDR shooting (PQ): HDR PQ] is set.
* Maximum burst as measured under conditions conforming to Canon testing standards (One-shot AF, High-speed continuous shooting+, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F)
* File size, number of shots available, and maximum burst vary depending on shooting conditions (including remaining battery level, battery temperature, cropping/aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Functions).

The recording format and movie recording size of the proxy movie are set automatically as shown in the table below depending on the recording format and movie recording size of the main movie.

* The angle of view and frame rate of the proxy movie are the same as for the main movie.
* The image quality (Normal/Fine) of the proxy movie is fixed to Normal.
* When Main Proxy is set, a main movie of 100.00 fps or more is not possible.
* Even if recording of the proxy movie stops due to an error, recording of the main movie continues.
* If recording of the main movie stops, recording of the proxy movie also stops.
* When Main Proxy is set, the recording time of the main movie is indicated. When [Rec. to multiple] is set, the recording time for the card with the least space is indicated.
* If there is no card 1, the time available for recording of the proxy movie is indicated, and proxy movie recording is possible.

59.94 Hz: NTSC / 50.00 Hz: PAL

High-quality 4K movies from 8K oversampling

• 4K-D Fine
• 4K-U Fine

High-quality 2K movies from 4K oversampling

• 2K-D Fine
• Full HD Fine

The recording format and movie recording size of the proxy movie are set automatically as shown in the table below de-pending on the recording format and movie recording size of the main movie.

*1: With [High Frame Rate: Disable] setting, movie is recorded with audio and the movie is played back at actual speed. With [High Frame Rate: Enable] setting, no audio is recorded and the movie is played in slow motion at 29.97 fps (NTSC) !25.00 fps (PAL) when played back. Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible).

* 100% angle of view for still photos (JPEG/HEIF).

Disable / Enable

* A movie recorded with [High Frame Rate: Enable] is played back at 29.97 fps (NTSC) / 25.00 fps (PAL) (played back in slow motion).
* No audio is recorded for the movie recorded with [High Frame Rate: Enable].
* Automatically stops if the maximum recording time per movie (see “6.43.1 Maximum recording time per recording”) is exceeded.
* HDMI output during recording is at 59.94 fps (NTSC) / 50.00 fps (PAL).
* The time code counts up 8 sec. (at 239.76 / 200.00 fps) or 4 sec. (at 119.88 / 100.00 fps) per second of real time.
* Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible).
* When RF-S or EF-S lens is used or when movie cropping enabled, only movie recording size of 2K-D /Full HD (119.88 / 100.00 fps) is available.

An HDR movie is created with a single exposure. Unnatural afterimages do not occur when, for example, shooting a moving subject. The shooting of movies with reduced clipped highlights is possible even in high contrast scenes.

HDR Movie Recording: Enable / Disable

Shadow compensation: Off /Standard / Brighter

Satulation: -4 / -3 / -2 / -1 / 0 / 1 / 2 / 3 / 4

Limitation of maximum brightness: Disable / 1000 nits

* Can be set in conjunction with [HDR PQ shooting: PQ].
* Movie digital IS and high-frequency anti-flicker shooting are possible.

HDR movie mode in combination with the following is available.

*1: High Quality Intra cannot be selected for compression method.
*HDR movie mode is not available when recording RAW movies.

* ISO 800 - ISO 128000 are settable for the ISO speed, and expanded ISO speeds cannot be set.
* Picture Style is set to Standard automatically, and Custom Picture cannot be set.
* Time-lapse movie recording and video calls / streaming are not possible.
* Setting to High Frame Rate (movie), movies of 239.76 / 200.00 / 119.88 / 100.00 fps is not available.
* HDMI RAW output is not possible.
* Dual shooting (still & movie) is not possible.
* Clarity or Auto Lighting Optimizer cannot be set.

Not supported

Dual shooting (still & movie): On/Off

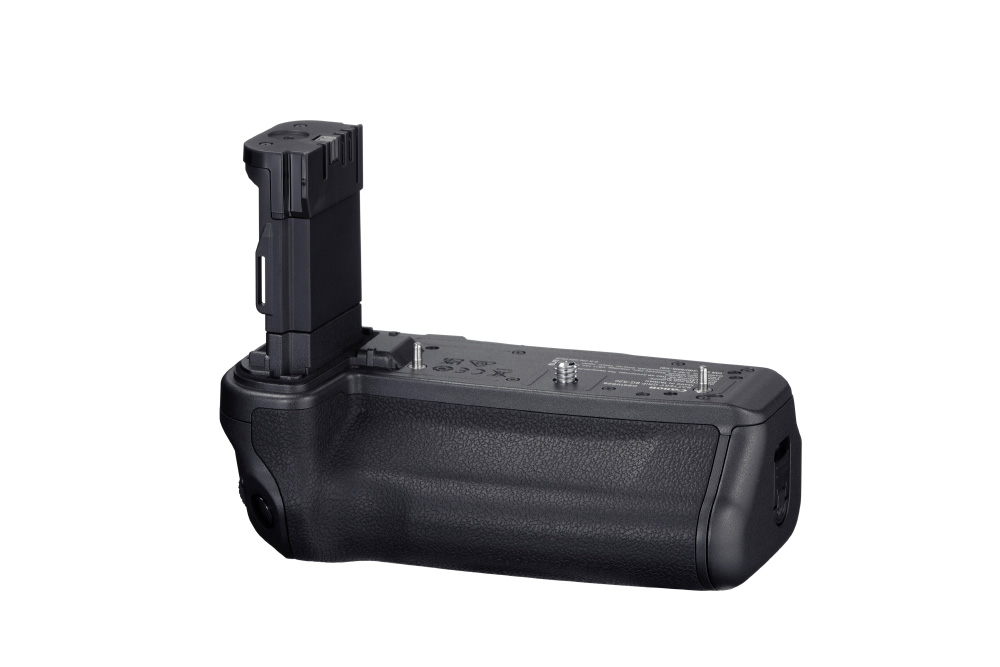

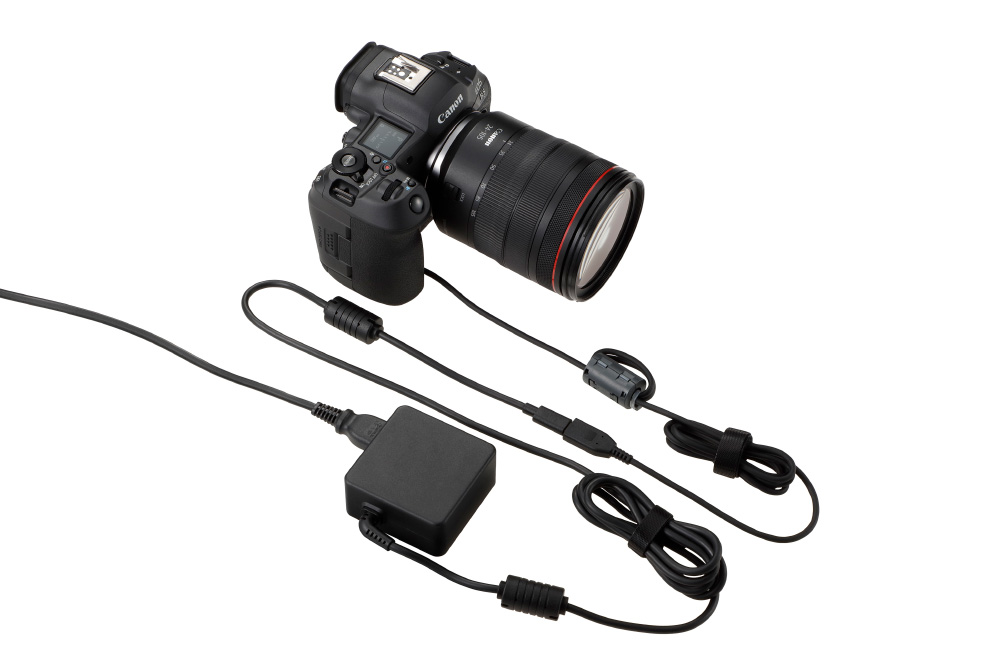

* When using LP-E6P Battery / DR-E6P Power Adapter

Drive mode: High speed / Low speed / Single shooting
* High speed shooting: Max. approx. 7.5 shots/sec. (NTSC), Max. approx. 6.2 shots/sec. (PAL)
* Low speed shooting: Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL)

JPEG quality: 1–10 (settable in 10 levels)

Main recording format: XF-AVC S YCC420 8 bit Movie recording size

• Resolution: Full HD (Normal)
• Frame rate: 29.97 (NTSC) / 25.00 (PAL) fps
• Compression method / LGOP

Recording pixel count: 7680×4320 Aspect ratio: 16:9
Recording image type: JPEG only

* Movies are recorded to card 1, and still photos are recorded to card 2 (a card needs to be inserted in each slot).
* A movie does not stop during still photo shooting.
* Still photo shooting during movie recording is possible by shutter button, wired remote controller, wireless remote
controller, and touch control.
* The settings during movie recording are applied to still photos.
* AF/AE operates with the settings suitable for movie recording. The color tone may differ from that of normal still photos
depending on the timing of still photo shooting.

* With Movie crop setting or when using an RF-S / EF-S lens and RF5.2mm F2.8 L DUAL FISHEYE, the <A+> mode cannot be set.
* Flash photography, anti-flicker shooting, time-lapse movie shooting, HDR shooting (PQ), and movie digital
IS are not available.
* The release time lag may be longer than when shooting normal still photos.
* When the shutter speed is slow, the release time lag (of still photos) may become longer or the continuous
shooting speed may be slower than when shooting normal still photos.
* Custom Picture cannot be set (shooting is with Picture Style).
* Focus breathing correction, chromatic aberration correction, and diffraction correction are not possible.
* Upscaling, resizing, and cropping of shot still photos are not possible.
* AF point information is not recorded for still photos.
* High Frame Rate (movie), Auto Level, and HDMI RAW output are not available.
* The internal temperature of the camera rises faster than normal Full HD movie recording.

(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy*1
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Custom (Custom WB)
(9) Color temperature*²

*1: Effective also in twilight and sunset.
*2: With an EL / EX-series speedlite having the color temperature information transmission feature, the color temperature setting changes to match the color temperature when the flash is fired. Set to approx. 6000K if the flash unit does not have the color temperature information transmission feature.
* White balance can be adjusted during movie recording.

Option between ambience priority and white priority settings, using SET button

Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels

• Shifted from the color temperatue of the current WB mode.
• Blue/amber and magenta/green shift can be set at the same time.

WB Bracketing available, up to ±3 levels Blue/amber or magenta/green, via Quick Control Dial

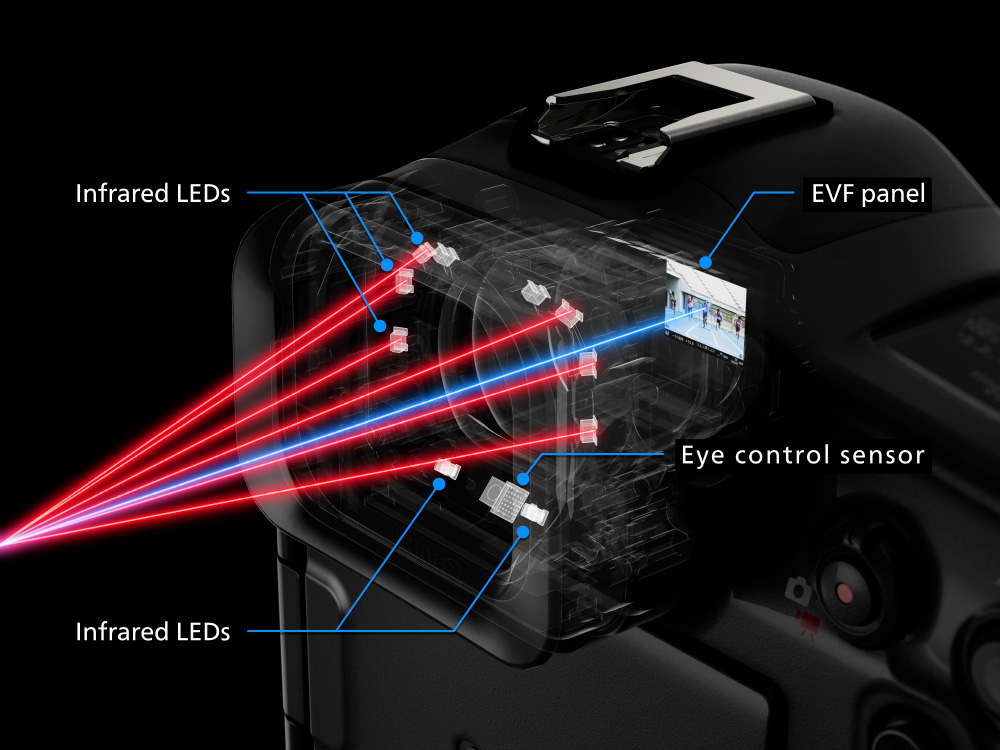

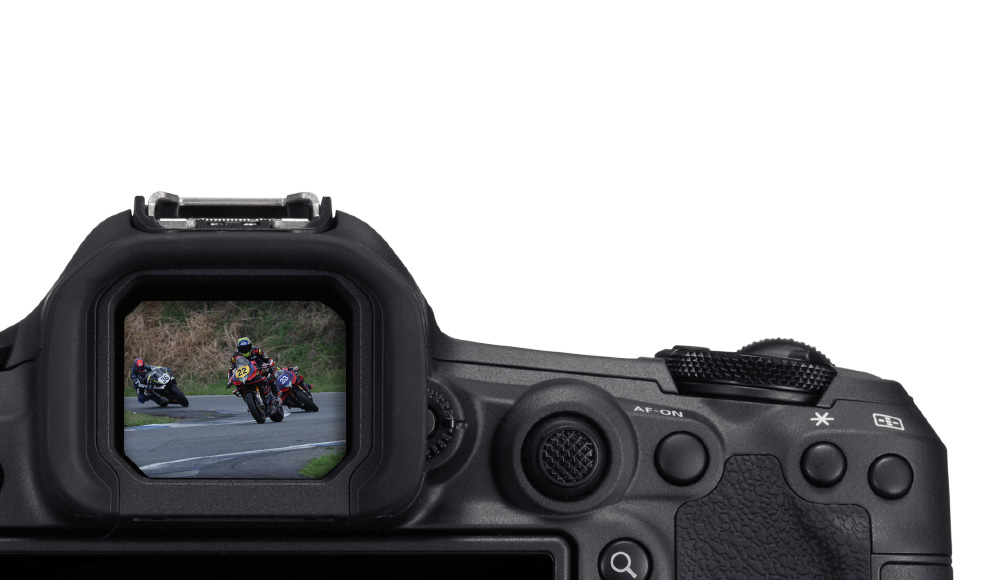

OLED color electronic viewfinder; 0.5-inch, approx. 9.44 million dots

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 25mm eyepoint).

Approx. 0.90x / Approx. 41.4 degrees (with 50mm lens at infinity, -1 m^-1)

Approx. 25mm (at -1 m^-1 from the eyepiece lens end)

Approx. -4.0 to + 2.0 m^-1 (dpt)*

*1: Dioptric adjustment lock mechanism

(1) Maximum burst
(2) Possible shots/Sec. until self-timer shoots
(3) Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
(4) Shooting mode
(5) AF method
(6) AF operation
(7) Image quality
(8) Card
(9) Drive mode
(10) Metering mode
(11) No. of remaining shots for focus braketing, multiple exposures, or interval timer
(12) Electronic level
(13) Movie recording time available
(14) Battery level
(15) Image Stabilizer (IS mode)
(16) Histogram (Brightness/RGB)
(17) Quick Control button
(18) Anti-flicker shooting
(19) White balance/White balance correction
(20) Picture style
(21) Auto Lighting Optimizer
(22) Still photo cropping / Aspect ratio
(23) AF point (1-point AF)
(24) AEB/FEB
(25) View Assist
(26) HDR PQ
(27) Flash ready / FE lock / High-speed sync
(28) Electronic shutter
(29) Touch shutter / Create folder
(30) AE lock
(31) Shutter speed / Multi-function lock warning
(32) Aperture value
(33) Wi-Fi® function
(34) Wi-Fi® signal strength
(35) Bluetooth® function
(36) Exposure simulation
(37) Magnify button
(38) ISO speed
(39) Highlight tone priority
(40) Exposure compensation
(41) Exposure level indicator

Dual Pixel CMOS AF

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)

Stills: Max. 1053 zones (39 x 27)

Movies: Max. 975 zones (39 x25)

AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%

Stills: Max. 5850 positions (78 x 56)

Movies: Max 4500 positions (90 x 50)

* May vary depending on settings..

EV –7.5 to 21 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100)

* Except RF lenses with a Defocus Smoothing (DS) coating.

4K30p: EV -5.5 to 21

Full HD30p: EV -5.0 to 21
(with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, ISO 100, and
29.97 / 25.00 fps.)

* Except RF lenses with a Defocus Smoothing (DS) coating.

• Spot AF
• 1-point AF
• Expand AF area: Above/below/left/right
• Expand AF area: Around
• Flexible Zone AF 1
• Flexible Zone AF 2
• Flexible Zone AF 3
• Whole area AF
• Whole area tracking OFF Spot AF
• Whole area tracking OFF 1-point AF
• Whole area tracking OFF Expand AF area: Above/below/left/right
• Whole area tracking OFF Expand AF area: Around

• Auto
• People
• Animals (dogs / cats / birds / horses)
• Vehicles (motorsports cars or motorcycles / aircraft / trains)

* Certain types of animals or vehicles may not be detected, depending on shape and appearance

Auto:

• Selects the eye closer to the camera (as detected from the angle of the face).
• At the same distance from the camera, selects the eye closer to the center of the image.

Right Eye:

• Prioritizes the subject’s right eye.

Left Eye:

• Prioritizes the subject’s left eye.

Real-time metering from CMOS image sensor (6144 96x64] metering zones)

(1) Evaluative metering (AF point-linked)
(2) Partial metering (approx. 10.0% of the area at the center of the screen)
(3) Spot metering (approx. 5.0% of the area at the center of the screen)
(4) Center-weighted average metering

EV -3 to 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)

Manually Set

* When set to [Highlight tone priority], the available manual setting range is ISO 200–102400.
* Expanded ISO speeds are not available when [HDR shooting (PQ): HDR PQ] is set.

ISO Auto range settings in still photo shooting

ISO Auto details in still photo shooting

*1: ISO 200 when set to [Highlight tone priority: Enable/Enhanced].
*2: Varies depending on the [Maximum] and [Minimum] settings for [Auto range].
*3: If outside the setting range, changed to the value closest to ISO 400.

1) Auto AE lock

• AE is locked as soon as subjects are in focus using One-Shot AF when set to selected metering mode in [C.Fn2: AE lock meter. mode after focus].

(2) User-set AE lock

• Use the AE lock button (update by pressing the button again) in Fv, P, Tv, Av, and M mode.
• Enabled in all metering modes.

Electronically controlled focal-plane shutter

(1) Electronic first curtain
(2) Mechanical shutter
(3) Electronic shutter*

* Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
* A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluorescent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

Mechanical / 1st-curtain Electronic shutter: 1/8000th sec – 30 seconds, in 1/3 or ½-step increments

Electronic shutter: 1/64,000th sec – 30 seconds, in 1/3 or ½-step increments

Mechanical Shutter: 1/200 sec.

Elec. 1st-curtain: 1/250 sec.

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay, Continuous

In-body IS operation can be selected when using a non-IS lens.

• Always on
• Only for shot (no stabilization in viewfinder/LCD screen between shots)

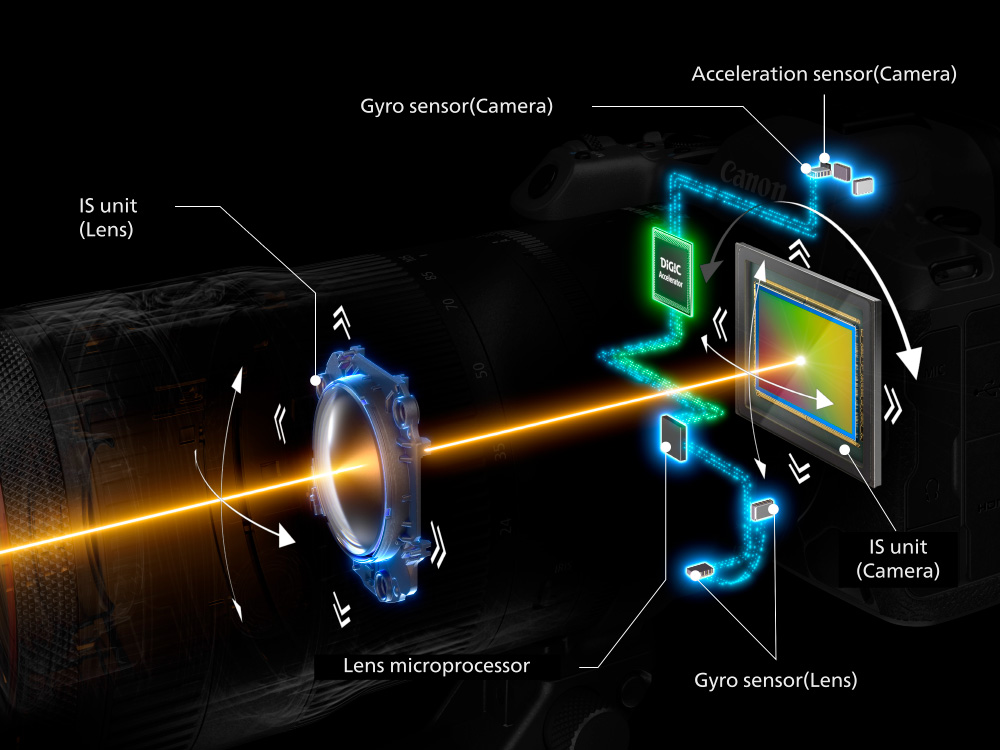

Coordinated IS when used with Canon RF or RF-S lenses having optical Image Stabilization

Canon Multi-function accessory shoe

• Optional Canon AD-E1 adapter required for conventional shoe-mount flashes and accessories

Ambience priority, standard, flash priority

±3 stops in 1/3- or 1/2-stop increments

E-TTL each shot / E-TTL 1st shot

Disable / HDR PQ

1 shot only / Every shot

* Longest time available per recording.
* Except when recording stops from overheating or due to the power source used, errors, or other reasons.

Normal Movies

* When the main recording format is RAW, the format is LPCM / 24 bit / 4CH.
* When the main recording format is RAW with the [A Rec options: Main + Proxy] setting, the audio
format can be selected for the proxy movie only.
* When the audio format of the main movie is AAC / 16 bit / 2CH, the audio format of the proxy movie
is also AAC / 16 bit / 2CH.
* When [HDMI RAW output: On] is set, the HDMI output audio format is fixed to LPCM / 16bit / 2CH.

RAW, 8K-DCI Normal / 8K-UHD Normal

1 v90 SD card speed or CFexpress 2.0 speed required
2 v60 SD card speed or CFexpress 2.0 speed required
* Requires CFexpress 2.0 Type-B [400MB/sec. or more]. SD cards not compatible except where noted.
* Video bit rate indicates video only; audio and metadata are not included.
* When [Audio format: AAC / 16bit / 2CH] is set (when set to RAW, LPCM / 24bit / 4CH).
* When [Add News Metadata: Off] is set.
* Movie recording stops when the maximum recording time per movie is reached.
* When set to 4K-UHD, 24.00 fps is not available.

1. Requires CFexpress 2.0 Type-B [400MB/sec. or more]
* Video bit rate indicates video only; audio and metadata are not included.
* When [Audio format: AAC / 16bit / 2CH] is set.
* When [Add News Metadata: Off] is set.
* Movie recording stops when the maximum recording time per movie is reached.
* When set to 4K-UHD, 24.00 fps is not available.

4K-DCI Normal / 4K-UHD Normal

1 v90 or higher SD card speed required.
2 v60 or higher SD card speed required.
3 U3 or higher SD card speed required.
* Requires CFexpress 2.0 Speed
* Video bit rate indicates video only; audio and metadata are not included.
* When [Audio format: AAC / 16bit / 2CH] is set.
* When [Add News Metadata: Off] is set.
* Movie recording stops when the maximum recording time per movie is reached.
* Same applies when [Movie cropping: Enable] is set.
* When set to 4K-UHD, 24.00 fps is not available.

Dual Pixel CMOS AF; Movie Servo AF available in AF Menu

±3 stops in 1/3- or 1/2-stop increments

Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off, HDMI rec. command on/off, Drop frame enable/disable)

3 or 5 seconds; user-selectable

Interval 2 sec – 99:59:59; Number of frames 2–3,600; Movie recording size 4K/Full HD; Auto exposure fixed @ first frame/auto for each frame; Beep per frame recorded (volume setting 0/silent – 5)

29.97 (set to NTSC); 25.00fps (set to PAL)

TFT color, liquid-crystal monitor

3.0-inch (screen aspect ratio of 3:2)

2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)

Approx. 2.1 million dots

Approx. 100% vertically/horizontally

Manually adjustable to one of seven brightness levels

Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified view

Clear View LCD II

• Anti-smudge coating applied.
• Anti-reflection coating not applied.

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

White areas without image data blink in single-image display.

Brightness / RGB

The Quick Control screen can be accessed by pressing the Quick Control button during shooting, recording, or playback.

The following settings are available for the [Quick Control screen] during movie recording.

• View 1: Conventional Quick Control screen
• View 2: Cinema EOS-style Quick Control screen

(1) Single image (select image)
(2) Select range
(3) All images in a folder
(4) All images on card

• Image browsing and image search can be based on ratings.
• Ratings-based image selections also possible with DPP.

(5) All found images (only during image search)

Except protected images

(1) Select images to erase
(2) Select range
(3) All images in folder
(4) All images on card
(5) All found images (only during image search)

Direct printing from camera not supported

Compliant to DPOF Version 1.1

IEEE 802.11b/g/n/a/ac

DS-SS modulation (IEEE 802.11b)

OFDM modulation (IEEE 802.11g/n/a/ac)

2.4 GHz band

Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels

5.0 GHz band

Frequency: 5180 to 5825 MHz
Channels: 36 to 165 channels

6.0 GHz band
Frequency: 5955 to 7095 MHz
Channels: 1 to 229 channels

(1) Camera access point mode
(2) Infrastructure mode

2.4 GHz band / 5 GHz band

6 GHz band

• Images can be viewed, controlled, and received using a smartphone.
• Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
• Images can be sent to a smartphone.
• NFC connection: Not supported
• Supported images: JPEG, HEIF, RAW/C-RAW, MP4 video files
• Transcoding while sending: Size to send (original / reduced size); Quality to send (original / compressed)

The camera can be controlled via Wi-Fi® or USB, with Canon EOS Utility software installed in a compatible Mac or Windows computer.

Not supported.

image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image.canon servers.

From image.canon, images can be sent to specific social media and 3rd-party cloud image services.

Bluetooth Specification Version 5.0 compliant (Bluetooth Low Energy technology)

GFSK modulation

Smartphone — up to 10 devices; BR-E1 remote controller — 1 unit

Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials

Available

* The camera is accessible to software (such as Zoom™, MS Teams™, Skype™, etc.) on a computer once connected via USB.

Customizable Buttons

• Shutter button
• Movie button
• AF-ON button
• AE lock button
• AF point button
• Depth of field preview button
• Lens AF stop button
• Multi-function button
• Set button
• Multi-controller
• Lens function button
• Speedlite menu direct button

• Main dial
• Quick control dial 1 & 2
• Lens Control ring

• Up to six top-tier menu items and Custom Functions can be registered.
• Up to five My Menu tabs can be added.

Equivalent to SuperSpeed Plus USB (USB 3.2 Gen 2)

• For PC communication
• Terminal type: USB Type-C
• Shared with terminal for in-camera charging with USB Power Adapter PD-E1.

HDMI OUT terminal (Type A)

• Resolution switches automatically
• HDMI CEC not supported

Provided

3.5mm diameter stereo mini jack

Compatible with 3.5mm diameter stereo mini-plug

Canon LP-E6P battery pack (LP-E6NH/LP-E6N can also be used but functionality is limited)

• LP-E6 cannot be used
• With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible (AC Adapter Kit ACK-E6 can also be used).
• With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera.

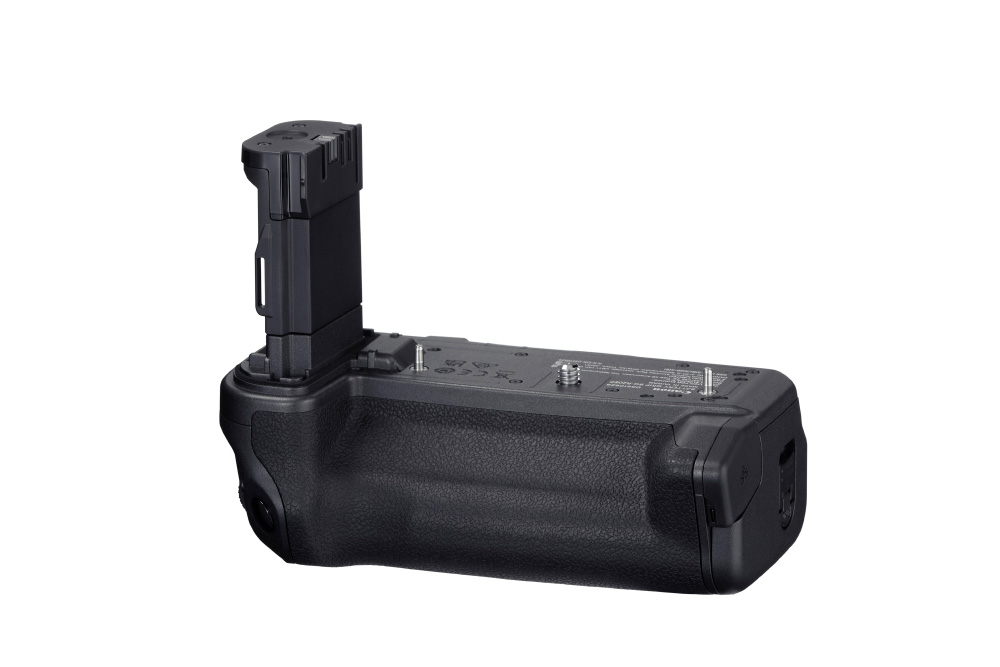

Compatible with Canon Battery Grip BG-R10

(Accepts one or two LP-E6NH, LP-E6N, or LP-E6 battery packs)

Automatic battery check with 6-level display when the power switch is turned ON.
Displayed in 6 levels in viewfinder, and on LCD screen.

Battery info display in Set-up Menu:

• Remaining capacity percentage
• Shutter count, on current battery charge
• Recharge performance (battery's ability to hold charge; displayed in 3 levels)

Approx. 0.4 sec.

• Based on CIPA testing standards.

Approx. 5.45 x 3.87 x 3.48 in. / 138.4 x 98.4 x 88.4mm

• Based on CIPA standards.

Approx. 1.5 lbs. / 670g (including battery, SD memory card; without body cap)

Approx. 1.3 lbs. / 588g (body only; without battery, card or body cap)

32–104°F / 0–40°C

85% or less
