RF50mm F1.4 L VCM Overview
The RF50mm F1.4 L VCM is part of the expanding Hybrid lens series, targeting a wide range of still-image and video shooters, with a combination of wide-angle coverage, a fast F1.4 maximum aperture,...
RF50mm F1.4 L VCM Overview
The RF50mm F1.4 L VCM is part of the expanding Hybrid lens series, targeting a wide range of still-image and video shooters, with a combination of wide-angle coverage, a fast F1.4 maximum aperture, and excellent image quality. On a full frame camera this lens gives you a Standard-angle look which has for decades been the most "all-purpose" focal length for photos and videos. On the video side, this lens really shines with a dedicated manual Iris ring, and a linear focus motor called a VCM (Voice Coil Motor) that is virtually silent. The VCM works in tandem with a Nano USM (Ultrasonic Motor) on the floating focus unit for incredibly fast autofocus. And finally, focus breathing is barely noticeable on this incredibly versatile lens , minimizing distractions for your viewer, and keeping your imagery and story as the priority.
MSRP: $2,099.99
Item Code: 6908C002
RF50mm F1.4 L VCM Features
Learn more about the features of the RF50mm F1.4 L VCM.
RF50mm F1.4 L VCM
Incredible Feature Set From an Incredible Lens Series
This lens has a lot going for it. You already know about the VCM and Iris control ring, but there is so much more. You can attach filters to this lens in two ways, a front 67mm screw thread allows for screw-on filters, and in the back of the lens is a cut gel filter holder (bundled). You also have a control ring and a control button both of which you can assign functions to. This lens is also dust and weather resistant, has two aspheric lenses, and ASC (Air Sphere Coating), SSC (Super Spectra Coating), and Fluorine Coating to significantly reduce ghosting and flare.
Excellent Image Quality
Again, thanks to the Canon RF lens mount, the RF50mm F1.4 L VCM lens offers great optical quality. Its optical design includes two UD lenses and one aspherical lens as well as Air Sphere Coating (ASC), and Super Spectra Coating (SSC) to reduce ghosting, and Fluorine coating on the front and rear lens surfaces to help mitigate smudges. On top of that, this lens features the same dust- and water-resistance found on every L-series lens with seals around the Control ring, focus ring, zoom ring, operation panel, and lens mount.
It’s Showtime!

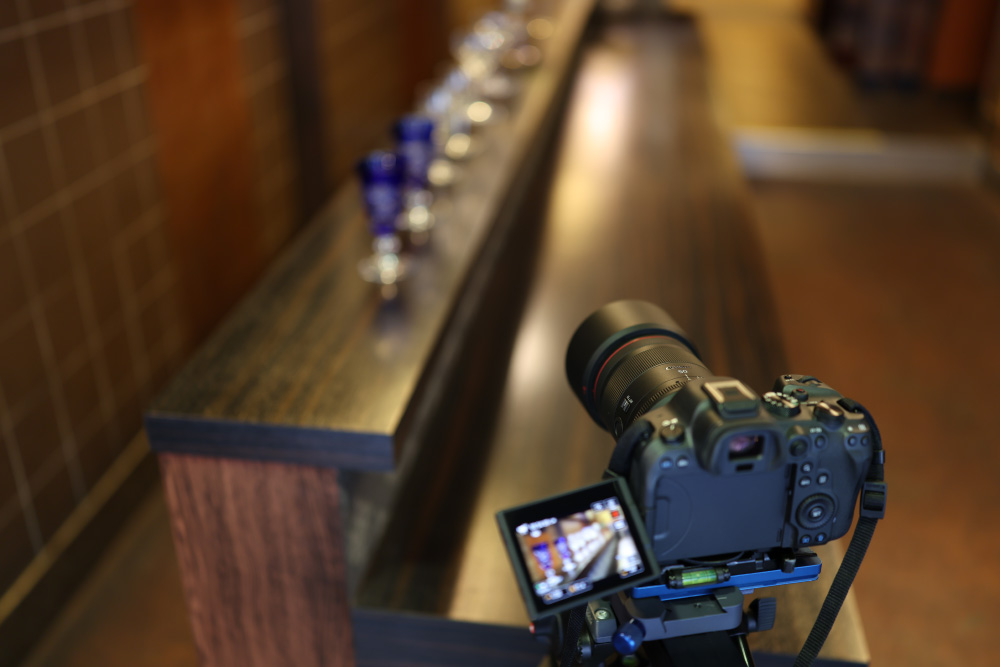

This lens is part of a new family of “hybrid” lenses that focus on video creation as much as still photography. To that end, this lens features a manual iris control ring so you can smoothly change the aperture from F1.4 to F16 during video capture. Thanks to advancements in lens design, focus breathing on this lens is extremely minimal, and backlit images are sharp. Combine all of these features, and you’ve got a great video lens in your hands.
Let’s Focus

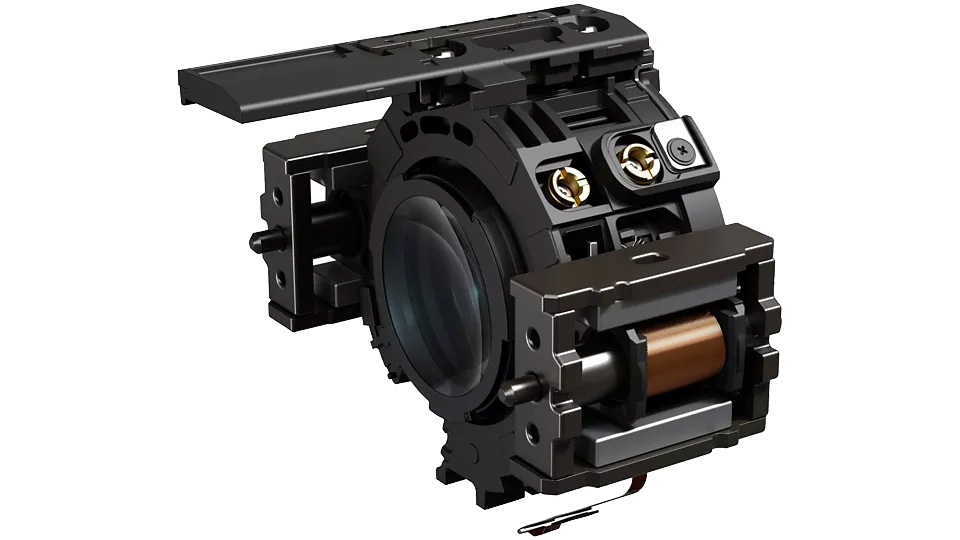

The RF50mm F1.4 L VCM is part of a series of “hybrid” lenses that focus on video performance as much as still photography. One of these new features is a change to how the focus system works. There is a Nano USM that controls the floating focus unit, and a VCM (Voice Coil Motor) that powers the rear focus unit. These focus motors work in tandem for incredible speed in near silence. One important note about the VCM is that it requires power to hold its position, so when the camera is off, or the lens is not attached to a camera, you may hear and feel slight movement. This is normal, and there is extra cushioning inside the lens to help prevent damage in this situation.
Get Close
With a minimum focus distance of just 9.4 inches , and an F1.4 aperture you can capture some really compelling imagery that is unlike anything else.
RF50mm F1.4 L VCM Specifications
See complete specifications for the RF50mm F1.4 L VCM.
RF50mm F1.4 L VCM
Lens
| Focal Length | 50mm |
| Maximum and Minimum Aperture | F1.4 - F16 |
| Lens Mount Type | RF Mount (Metal Mount) |
| Compatible Cameras | Canon EOS R-series, full-frame and APS-C |
| Minimum Focusing Distance | 0.4m (15.7 in) |
| Maximum Magnification | 0.15x |
| Field of View, at Minimum Focus Distance | Approx. 230mm × 154mm (9.1" x 6.1") |
| Angle of View (Diagonal) | Approx. 46° |
Optical Design
| Lens Construction | 14 elements in 11 groups |
| Special Elements | One UD Lens, One Aspherical Lenses |
| Lens Coating | Canon ASC (Air Sphere Coating), SSC (Super Spectra Coating), Fluorine Coating |
| Filter Size Diameter | ø67 mm |
| Aperture Blades | 11 |
| Image Stabilization | Not Provided |
Focusing
| Focusing Drive System | Canon Nano USM (Ultrasonic Motor) and VCM (Voice Coil Motor) |
| Full-time Manual Focusing | Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras) |
| Dual Pixel CMOS AF Coverage (Horizontal x Vertical) |
|
Exterior Design
| Control Ring | Dual-function Manual focus ring / Control Ring (selected using camera menu) |
| Manual Focus Ring | Electronic ring system
|
| AF / MF Switch | Provided |
| Iris Ring | Provided |
| Aperture value adjustment steps | During movie shooting: 1/32 stop During still photo shooting: adjust on camera |
| Lens Function Button | Provided x 1 |
| Distance Scale | Not Provided |
| Distance Limiter Switch | Not Provided |
| Dust / Weather Resistant Construction | Yes |
Dimensions, Weight
| Maximum Outer Diameter x Length | Approx. ø3.0 in. x 3.9 in. (ø76.5mm x 99.3mm) |
| Weight | Approx. 20.5 oz. / 1.3 lb. / 580g |
Accessories
| Lens hood | Canon ES-73 (Bundled)
|
| Lens cap | Canon E-67II (Bundled) |
| Dust cap | Canon Lens Dust Cap RF (Bundled) |
| Lens Case | Canon Lens Case LP1219 (Bundled) |
| Extension Tubes | None (No Canon RF mount extension tubes) |
| Close-up Lenses 250D / 500D | Not compatible |
| Canon RF Extender 1.4x / 2x | Not compatible |
| Canon Gelatin Filter Holder III / IV | Not compatible |
| Rear Gelatin Filter Holder | Not compatible |
* This product emits low level magnetic flux. If you use an implantable cardiac pacemaker or other medical device and feel abnormalities, please keep away from this product and consult your doctor.
