CJ27ex7.3B IASE T Overview

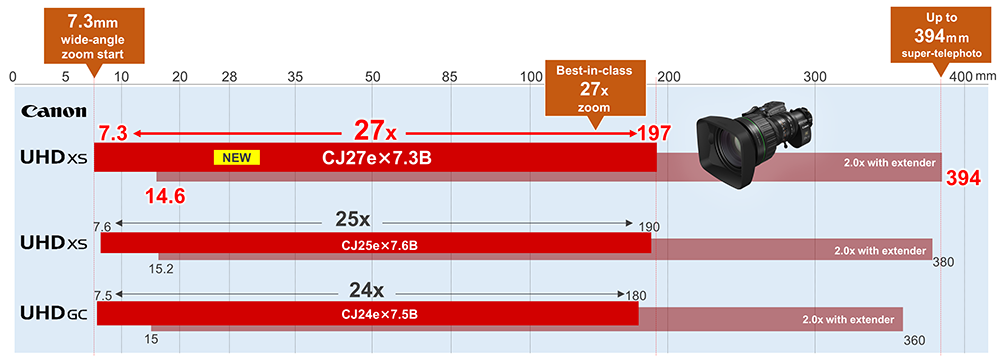

Powerful 27x Magnification and 7.3mm Wide Angle in a 2/3-inch ENG-style Lens

The CJ27ex7.3B, featuring the latest in Canon’s optical technologies, has a best-in-class magnification  i of 27x and a focal length range of 7.3mm to 394mm when the 2x extender is engaged. This focal range accommodates various uses including studio work, sports coverage, and news reporting where limited space makes close-ups difficult. The versatile lens allows camera operators to frame an entire subject and capture close-ups.

High magnification x Wide angle x Telephoto

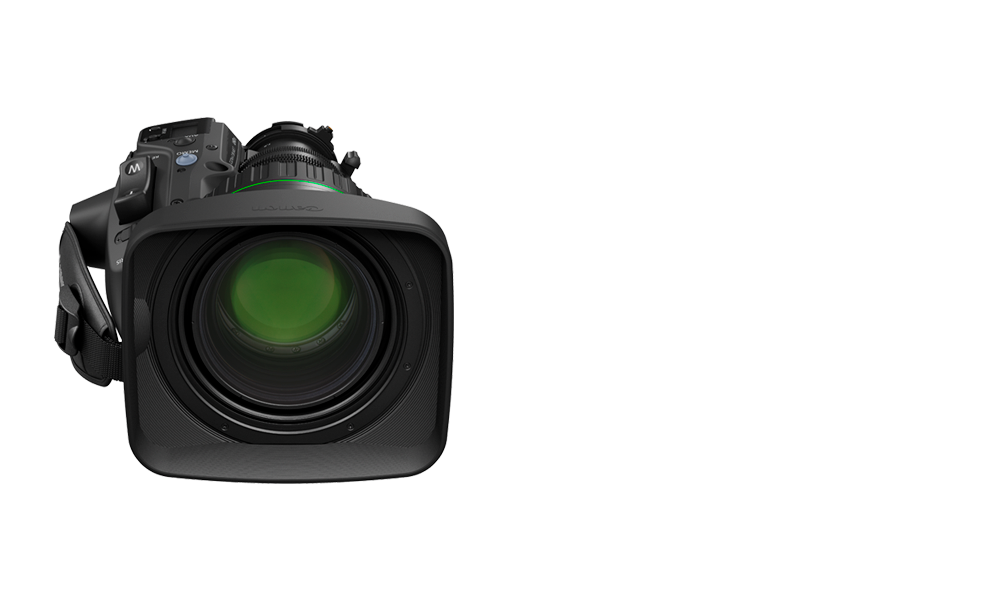

Compact and Lightweight Body

The compact and lightweight body combines the durability of conventional ENG lenses with the optical performance required for 4K cameras. As with all Canon ENG lenses, the drive unit is positioned close to the lens body’s optical axis, lessening arm and shoulder fatigue when shooting.

High Optical Performance, UHDxs Lens

Canon’s optical design technology delivers outstanding optical performance for today’s 2/3-inch 4K cameras. Canon UHDxs lenses provide the superior resolution and tonal gradation demanded of 4K images. In addition, they control aberrations with precision, including color blurring and color fringing.  Consistent with all UHDxs lenses, the CJ27 provides high 4K resolution and contrast from the center of its image to the periphery throughout the zoom range.

Minimized Chromatic Aberration

Fluorite and UD glass have been generously utilized and optimally arranged for better correction of chromatic aberrations. This helps increase image clarity with less color bleeding or coloring around the outlines, achieving superb color reproduction to the edges of the images.

Reduced Ghosting and Flare

Special coatings and an internal lens barrel designed to prevent reflection, result in clean black reproduction and less ghosting and flaring- sustaining high-tonality images that support High Dynamic Range (HDR) and Wide Color Gamut (WCG).

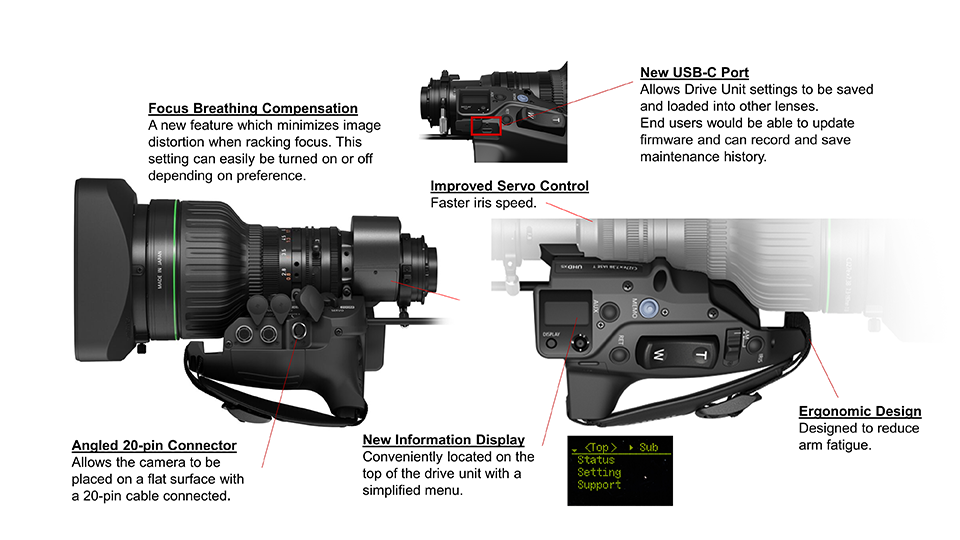

New e-Xs V Drive Unit with Angled 20pin, USB-C Connector and Improved Menu Functions

With an angled 20-pin connector and a built-in USB-C connector, the e-Xs V gives users a better experience with equipment setup and maintenance and improves operability with an updated display menu.

Remote and Virtual Support

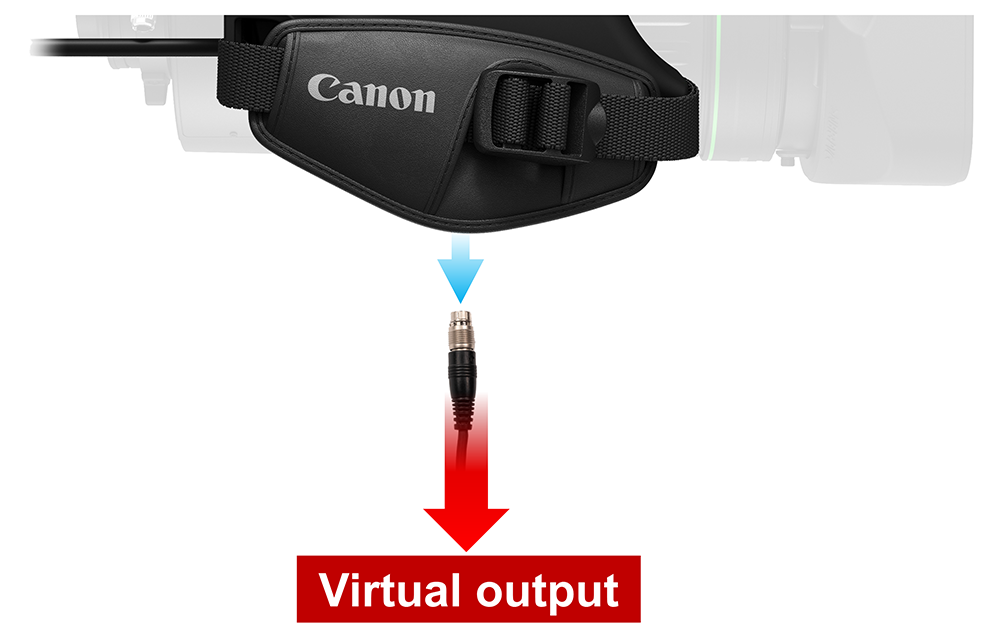

The high-resolution, 16-bit absolute value encoder enables high-precision location detection, making calibration easier when creating virtual content. The 20-Pin connector can be switched to a virtual terminal to output  zoom, focus, and iris position information.

12-pin Serial Communication

The CJ27’s serial connection with a remote control-compatible camera transmits focus, zoom, and iris position information and allows remote control of the camera.

Supports ARIA Camera Feature

ARIA ( Automatic Restoration of Illumination Attenuation) adjusts illumination so that light is more evenly distributed between the wide and the telephoto ends of the lens. First, the Camera-lens communication at initialization identifies the lens attached. When zooming, the camera’s gain is increased starting at the F-drop/ramping point. Simultaneously, Peripheral Illumination Correction corrects light fall-off from the center of the frame to the periphery. This correction more evenly distributes light throughout the entire image.
