EOS R6 Overview

The EOS R6 full-frame mirrorless camera is designed to meet the demands of both photographers and video content creators who want a strong and versatile camera to keep up with their active lives. It can go from photographing high-speed action sports to filming 4K cinematic video with ease thanks to its high-performance CMOS sensor and DIGIC X image processor.

The EOS R6 features the same base image sensor and image processor as the EOS-1D X Mark III, enabling a native ISO range of 100-102,400. With high-speed continuous shooting of up to 12 fps with the Mechanical shutter and up to 20 fps with Electronic "silent" shutter, the EOS R6 can keep up with just about any fast moving subject. Combined with the new Dual Pixel CMOS AF II system with approx. 100% coverage of the frame, and 1,053 Automatic AF Zones, the EOS R6 will confidently follow elusive subjects at 20fps for sharp images. Tracking subjects is easy and intuitive with the ability to track people using Eye, Face and Head Detection AF, or when tracking the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. With the new 5-axis In-Body Image Stabilizer, up to 8-stops of shake correction is possible with both non-stabilized and optically image-stabilized lenses, opening up many more creative opportunities for incredibly stable lower light photo or video content creation. Those looking for creative cinematic video options will appreciate frame rates including 4K 60P and Full HD 120P with the option of internally recorded 4:2:2 10-bit Canon Log or HDR-PQ recording. And the inclusion of Dual SDXC UHS-II card slots combined with Wi-Fi® and Bluetooth® allows for multiple transfer and automatic backup options, making the EOS R6 ready when you are.

MSRP: $3,499.99

Item Code: 4082C002

EOS R6 Features

Learn more about the features of the EOS R6.

EOS R6

High Image Quality featuring a 20 Megapixel Full-frame CMOS Sensor.

High Image Quality featuring a 20 Megapixel Full-frame CMOS Sensor

Featuring a Canon-developed 35mm full-frame CMOS sensor with approx. 20 effective megapixels, the EOS R6 camera is engineered with an imaging system, designed to capture sharp and detailed images, even in low-light scenarios. Dark portions of an image even at high ISO speeds, and increased sensitivity are rendered with lower noise. While the high-speed image capture rate of EOS R6's accelerating frame-to-frame shooting performance. The sensor also includes Dual Pixel CMOS AF II for high-speed, precise AF during Live View still and movie recording.

DIGIC X Image Processor with an ISO range of 100-102400; Expandable to 204800.

DIGIC X Image Processor

The EOS R6 camera features a powerful DIGIC X Image Processor, enabling high-performance operation and coordination or processes such as Dual Pixel CMOS AF II, Image Stabilization, image processing, and video functionality. Powerful all around, the DIGIC X Image Processor helps ensure your photos and videos look sharp and high resolution with minimal noise or grain.

ISO range of 100-102400; Expandable to 204800

Featuring an ISO range of 100-102400 (expandable to 204800), the EOS R6 camera delivers high standard and expanded ISOs (for still images), and a score of Auto ISO options to help enhance shooting in varied and fast-changing lighting situations. The EOS R6 camera has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.

High-Speed Continuous Shooting of up to 12 fps with Mechanical Shutter and up to 20 fps Electronic (Silent) Shutter.

Up to 12 fps with Mechanical Shutter

Delivering incredible performance at speeds of up to 12 fps, the EOS R6 camera can capture the split-second details between a subject’s movements. This is great for dynamic action photos such as athletes, animals or vehicles in motion.

Up to 20 fps Electronic (Silent) Shutter

Especially helpful for wildlife photography, journalism and situations where photographers need to remain discrete, the EOS R6 camera features a selectable electronic (silent) shutter mode, and can capture images at up to 20 fps. With a fast AF/AE system, DIGIC X image Processor and high-speed recording with new Dual card slots, the EOS R6 helps ensure that camera operations are performed quickly and precisely.

Dual Pixel CMOS AF covering Approx. 100% Area with 1,053 AF Areas.

High-speed Focusing with Dual Pixel CMOS AF

The EOS 6 camera’s highly responsive Dual Pixel CMOS AF II system features an incredible 1,053 Automatic AF zones that can be designated as auto-focus focal points (when Face + Tracking priority AF is selected). This ensures higher-precision than has been seen in previous EOS cameras and enables the camera to execute consistent and impressive autofocus tracking of the subject. Fast action can be captured and focus can be maintained with speed, accuracy and ease.

AF Area Coverage of Approx. 100% x 100%^2

The EOS R6 camera features an expansive focus area of approx. 100% horizontal and 100% vertical^2 when working with compatible RF and EF lenses. This means fast and impressive focusing even when composing your subject far from the center of the frame.

^2 When taking still photos. Actual coverage varies depending on the lens in use. Focus area will not be covered with the following RF lenses: RF600mm F11 IS STM, RF800mm F11 IS STM.

EV -6.5^3 Low-light Autofocus

Amazing for nighttime photography or in very low-light indoor settings, the EOS R6 camera’s brilliant AF can operate in light as dim as a light rating of EV -6.5^3 – a first in an EOS mirrorless camera – where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works together with the EOS R6’s EVF to clearly capture subjects even when light is limited. Combined with the EOS R6 camera’s remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.

^3 When using f/1.2 lens under the following conditions: center focus point, room temperature, One-shot AF, ISO 100. This does not apply to RF lenses with DS (Defocus Smoothing) coating.

Subject tracking of People and Animals* using Deep Learning Technology.

Head and Eye Detection

The EOS R6 brings head and eye detection to a new level. Even in situations where a camera may struggle to detect a subject, the EOS R6 can locate and a person’s head, face or eye when people detection is set, allowing ease and accuracy when capturing videos or still images, or while in Live View mode.

Animal Detection*

Animal detection is possible with the EOS R6 camera. Developed using Deep Learning Technology, the EOS R6 can effectively track the whole body, face, or eye of cats, dogs, or birds for speed and precision – regardless of the animal’s size, posture, or orientation of the face.

4K up to 60fps, 1080p up to 120fps 10-bit 4:2:2 with Canon Log or HDR PQ, Internal Recording in all Formats, with Auto Focus.

4K up60fps, 1080p up to 120fps 10-bit 4:2:2 with Canon Log or HDR PQ, Internal Recording in all Formats, with Auto Focus.

Powered by the DIGIC X image processor, the EOS R6 is designed with the video content creator in mind. With oversampled UHD 4K recording at up to 60fps, Full-HD 1080p recording at up to 60fps and Full-HD High-frame rate recording at up to 120fps, the EOS R6 is a versatile camera with options for a variety of different shooting scenarios. Featuring internally recorded 4:2:2 10-bit H.265 Canon Log recording, and 4:2:2 10-bit H.265 HDR PQ recording, regardless what your timeline for delivery may be, advanced users will find EOS R6 capable of capturing confidently even during challenging high-contrast exposure situations. Moreover, oversampled UHD 4K 4:2:2 10-bit video signal at up to 60fps can be output from the HDMI port with a choice of either Picture Style, Canon Log or HDR PQ format, the output can be recorded to another device externally, or the footage can be viewed on an HDR PQ compatible TV. Additionally, high-end features such as Interval Timer, 4K Time-Lapse mode, Mic and Headphone jacks, and Zebras are available to provide advanced-level control and versatility to the video content creator.

Shooting Times
the EOS R6 offers powerful movie recording and stills capabilities within a compact body design. At the highest frame rates and resolutions heat is inevitably generated because of the resolution, frame rate and auto focus capability. The approximate shooting times for the available resolutions and frame rates in 23°C / 73°F environments from a cold start are detailed below.

4K 60P
- 94% sensor width: 30 minutes
- APS-C crop (5.1K oversampled): 45 minutes *1

4K 30P
- 94% sensor width: not limited by heat
- APS-C crop (5.1K oversampled): 40 minutes *1

*1 Recording is limited to 29 minutes 59seconds. Indicates the time when recording can be resumed immediately

In-body Image Stabilizer can provide up to 8 stops of Shake Correction*.

In-body Image Stabilizer can provide up to 8 stops of Shake Correction*

The EOS R6 camera features Canon's new 5-axis IBIS (In-Body Image Stabilizer). This will not only help enhance the ability to hand-hold still images at slower shutter speeds but it will also help to reduce camera shake when recording movies. Additionally, the EOS R6 camera’s In-Body Image Stabilizer will work in combination with Lens-based Optical Image Stabilizers found in many Canon RF and EF lenses.

Built-in 0.5” 3.69 Million Dots OLED EVF with 120 fps refresh rate^1, Vari-angle LCD Touchscreen.

0.5-type OLED EVF with Approx. 3.69 Million Dots

The EOS R6 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. The EOS R6 camera’s EVF supports a 120 fps refresh rate^1 and has been created to provide a bright, sharp and colourful 100% view of the subject at hand. Displaying a bright image and extensive shooting information that rotates with the camera's orientation when changing from Landscape to Portrait composition.

Vari-angle Touchscreen LCD

The EOS R6 camera features a 3.0-inch, Clear View LCD II Vari-angle Touchscreen LCD. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of both the EVF and the LCD monitor can even be adjusted separately. Touchscreen features include settings, review and even AF point selection.

Dual UHS-II SD Memory Card Slots.

Dual UHS-II SD Memory Card Slots

Taking advantage of its compact body, the EOS R6 camera has dual card slots for UHS-II SD memory cards. Both slots are capable of burst shooting of approx. 20MP still images, at speeds of up to 20 fps, as well as internal recording of 4K 60p movies.

Built-in Wi-Fi®^, Bluetooth®^^ Technology.

Built-in Wi-Fi®^ Capability

The EOS R6 camera is designed to make using Wi-Fi®^ connectivity fast and easy. It can transfer files directly to a compatible smart device using the free Canon Camera Connect app. Simply connect to the Camera Connect app where you can browse, or download images to your smart device, then share and upload from the device directly to various social media sites and web services.

Bluetooth®^^ Capability

Bluetooth®^^ connectivity offers continuous connection, and allows the EOS R6 camera to automatically connect to a compatible smart device that is paired with the Canon Camera Connect app. This allows a number of functions from easy image transfer to remote shooting, to adding GPS*1 information to your photos and videos and more.

*1 In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

Image.Canon Service

image.canon is a cloud service designed to ease your imaging workflow, whether you are a professional, enthusiast, or casual user. Connecting the EOS R6 camera to the image.canon service will allow photographers to seamlessly upload all images and movies in their original format and quality, and access them from the dedicated app or through a web browser – and automatically forward them to a computer, mobile device, and third party services.

Enhanced Operating Controls.

Multi-controller Customization

Designed to allow users to operate customizable camera functions while looking through the electronic viewfinder, the EOS R6 camera features a joystick button located on the back of the camera that makes it easy for the user to adjust autofocus point location, navigate menus, and toggle settings.

Main Dial and Quick Main Dials 1 & 2

With its compact body size, the EOS R6 camera features a three dial User Interface in the main dial, quick control dial 1 and quick control dial 2 which provide direct control over the traditional exposure controls such as Shutter Speed, Aperture, and ISO –and are fully customizable to the users’ preference.

Optional Battery Grip.

Battery Grip

The EOS R6 camera’s optional dedicated Battery Grip BG-R10 holds 2 LP-E6NH Battery Packs, while enabling virtually seamless vertical and horizontal operation and additional functions with buttons similarly configured in a comfortable and ergonomic grip. The Battery Grip BG-R10 also has a useful battery charging function (with optional USB power delivery adapter attached) that’s particularly helpful for power-hungry operations like video recording or shooting over an extended period of time.

High-Capacity Battery Pack LP-E6NH

For increased power and the convenience of compatibility among multiple cameras, the EOS R6 camera uses Battery Packs LP-E6NH, and has backwards compatibility with previous LP-E6-series batteries that have been equipped with cameras such as EOS 5D Mark IV, and EOS R (may lose some functionality, cannot charge via USB). Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NH is a robust, long-lasting battery that helps deliver power, shot after shot.

Impressive Durability.

Magnesium Body

Comfortable and solid in the hand, the EOS R6 camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

Shutter Durability

The EOS R6 camera has a durability rated at approx. 300,000 cycles and a full-frame focal-plane shutter that offers approx. 12 shots/sec.

Dust- & Water-resistant Sealing

The EOS R6 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body.

EOS R6 Specifications

See complete specifications for the EOS R6.

Download full specs via PDF here.

Type
Type	Digital interchangeable lens, mirrorless camera
Image Processor	DIGIC X
Recording Media	(Two) SD card slots Compatible with UHS-II Eye-Fi cards and Multimedia cards (MMC) are not supported.
Compatible Lenses	Canon RF lens group (excluding EF, EF-S and EF-M lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount	Canon RF mount
Image Sensor
Type	CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective Pixels	Approx. 20.1 megapixels
Screen Size	Approx. 36.0 x 24.0 mm
Pixel Unit	Approx. 6.56 µm square
Total Pixels	Approx. 21.4 megapixels
Aspect Ratio	3:2 (Horizontal: Vertical)
Color Filter System	RGB primary color filters
Low Pass Filter	Installed in front of the image sensor, non-detachable
Dust Deletion Feature	(1) Self Cleaning Sensor Unit Removes dust adhering to the low-pass filter. At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi- cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen). After manually activated cleaning, the camera will automatically restart (Power OFF to ON). When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected. (2) Dust Delete Data acquisition and appending The coordinates of the dust adhering to the low-pass filter are detected by a test shot and append- ed to subsequent images. The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots. Not available with EF-S lenses, in cropped shooting or multi-exposure shooting. (3) Manual cleaning (by hand)

Recording System

Recording Format

Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.

*Supports time difference information in Exif 2.31.

Image Format

JPEG, HEIF, RAW / C-RAW (CR3), C-RAW (Canon original) ; Movies: ALL-I (Time-lapse video only), IPB, MP4

File Size

Image Quality

File Size [Approx. MB]

Possible Shots [Approx.]*¹

Maxiumum Burst [Approx.]

Standard Card *¹

High-speed Card*² (UHS-II)

JPEG*³

L (fine)

7.1

4240

1000 or more

L (Normal)

3.9

7720

1000 or more

M (fine)

4.0

7470

1000 or more

M (Normal)

2.3

12710

1000 or more

S1 (Fine)

2.8

10860

1000 or more

S1 (Normal)

1.7

17460

1000 or more

1.8

16060

1000 or more

HEIF*⁴

L (fine)

7.5

3940

770

1000 or more

L (Normal)

5.8

5060

1000 or more

M (fine)

4.4

6530

1000 or more

M (Normal)

3.5

8220

1000 or more

S1 (Fine)

3.0

9330

1000 or more

S1 (Normal)

2.5

11160

1000 or more

1.8

14100

1000 or more

RAW

21.8

1400

110

240

C-RAW

11.2

2750

240

1000 or more

RAW+JPEG*³

RAW +

L (fine)

21.8+7.1

1050

160

C-RAW +

L (fine)

11.2+7.1

1660

140

770

RAW+HEIF*⁴

RAW +

L (fine)

25.0+7.5

940

140

C-RAW +

L (fine)

14.3+7.5

1420

140

380

File Numbering	The following file numbers can be set: 1. File numbering methods a. Continuous numbering i. The numbering of captured images continues even after you replace the card. b. Auto reset i. When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card. 2. Manual reset a. Resets the file number to 0001, and creates a new folder automatically. * When manually resetting the file number, folders can also be renamed.
RAW + JPEG / HEIF Simultaneous Recording	Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
Color Space	Selectable between sRGB and Adobe RGB
Picture Style	Auto Standard Portrait Landscape Fine Detail Neutral Faithful Monochrome User Defined 1–3 In Scene Intelligent Auto, [Auto] will be set automatically. [Standard] is the default setting for [User Def. 1–3].
White Balance
Settings	Auto (Ambience priority/White priority) Daylight Shade Cloudy* Tungsten light White fluorescent light Flash Custom (Custom WB) Color temperature * Effective also in twilight and sunset.
Auto White Balance	Option between ambience priority and white priority settings, using SET button
White Balance Shift	Blue/amber bias: ±9 levels Magenta/green bias: ±9 levels Corrected in reference to the current WB mode’s color temperature.
Viewfinder
Type	OLED color electronic viewfinder
Coverage	Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).
Magnification / Angle of View	Approx. 0.76x / Approx. 35.2 degrees (with 50mm lens at infinity, -1 m-1)
Eye Point	Approx. 23mm (at -1 m-1 from the eyepiece lens end)
Dioptric Adjustment Range	Approx. -4.0 to + 2.0 m-1 (dpt)

Viewfinder Information

Maximum burst
Possible shots/Sec. until self-timer shoots
Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
Shooting mode
AF method
AF operation
Image quality
Card
Drive mode
Metering mode
No. of remaining shots for focus braketing, multiple exposures, or interval timer
Electronic level
Movie recording time available
Battery level
Image Stabilizer (IS mode)
Histogram (Brightness/RGB)
Quick Control button
Anti-flicker shooting
White balance/White balance correction
Picture style
Auto Lighting Optimizer
Still photo cropping / Aspect ratio
AF point (1-point AF)
AEB/FEB
View Assist
HDR PQ
Flash ready / FE lock / High-speed sync
Electronic shutter
Touch shutter / Create folder
AE lock
Shutter speed / Multi-function lock warning
Aperture value
Wi-Fi® function
Wi-Fi® signal strength
Bluetooth® function
Exposure simulation
Magnify button
ISO speed
Highlight tone priority
Exposure compensation
Exposure level indicator

Autofocus

Focus Method

Dual Pixel CMOS AF

Number of AF zones available for Automatic Selection

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%

(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)

Stills: Max. 1053 zones (39 x 27)

Movies: Max. 819 zones (39 x21)

Selectable Positions for AF Point

AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%
Stills: Max. 6072 positions (92 x 66)
Movies: Max 4968 positions (92 x 54)

AF Working Range

EV -6.5 to 20 (f/1.2 lens*, center AF point, One-Shot AF,at 73°F/23°C, ISO 100)

* Except RF lenses with a Defocus Smoothing (DS) coating.

Focusing brightness range (in movie recording)

EV -5 to 20 (f/1.2 lens*, center AF point, One-Shot AF,at 73°F/23°C, ISO 100)

* Except RF lenses with a Defocus Smoothing (DS) coating.

Available AF Methods

AF Method

Face+Tracking AF

Spot AF

1-point AF
Must be selected for "Limit AF methods."

Expand AF Area
- 4-point expansion
- Around expansion (8-points)

Zone AF

Large Zone AF: Vertical, Horizontal

Available AF Detection zones

Zone AF	9 x 9
Large Zone AF: Vertical	Max. 9 x 21
Large Zone AF: Horizontal	Max. 31 x 9
Face+Tracking (Auto selection with nothing detected)	Max. 39 x 27

Eye Detection

Auto:

Selects the eye closer to the camera (as detected from the angle of the face).
At the same distance from the camera, selects the eye closer to the center of the image.

Manual:

Can be selected by touch.
Can be selected with the Multi-controller.

Exposure Control

Metering Modes

Real-time metering with image sensor (384 [24x16] metering zones)

Evaluative metering (AF point-linked)
Partial metering (approx. 5.8% of the area at the center of the screen)
Spot metering (approx. 2.9% of the area at the center of the screen)
Center-weighted average metering

Metering Range

EV -3 – 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)

Exposure Modes

Scene Intelligent Auto
Flexible-priority AE (Fv)
Program AE (P)
Shutter-priority AE (Safety shift possible) (Tv)
Aperture-priority AE (Safety shift possible) (Av)
Manual exposure (M)
Bulb
Custom shooting mode C1, C2, C3

ISO Speed Range

Manually Set

Normal	ISO 100–102400 (in 1/3- or 1-stop increments)
Expanded	L: equivalent to ISO 50, H: 204800

For [Highlight tone priority], the settable ISO speed range will be ISO 200 to 102400.
Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

ISO Auto range settings in still photo shooting

	Auto Range
ISO Speed	ISO 100-102400

*1-stops increments

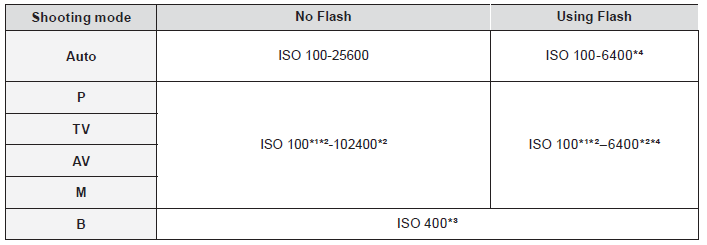

ISO Auto details in still photo shooting

*1: ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].

*2: Varies depending on [Maximum] and [Minimum] of [Auto range].

*3: If outside the setting range, changed to the value most close to ISO 400.

*4: ISO 1600 when using a lens that is not compatible with “Variable control of maximum ISO Auto limit for E-TTL”.

Exposure

Compensation

User-set	±3 stops in 1/3- or 1/2-stop increments
AEB	±3 stops in 1/3- or 1/2-stop increments

AE Lock

Auto AE lock
- The metering mode for AE lock after focus can be customized.
User-set AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.

Shutter

Type

Electronically controlled focal-plane shutter

Electronic first curtain
Mechanical shutter
Electronic shutter*

*Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].

*A shutter release sound is not generated. However, note that the sounds other than the shutter
release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.

*In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores- cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

Shutter Speeds

When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
When [Electronic] is set: 1/8000-0.5 sec.

X-sync Speed

Mechanical Shutter: 1/200 sec.
Elec. 1st-curtain: 1/250 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. delay, 2-sec. delay

Image Stabilization (IS mode)

Still Photo IS

In-body IS operation can be selected when using a non-IS lens.

Always on
Only for shot (no stabilization in viewfinder/LCD screen between shots)

External Speedlite

E-TTL balance

Ambience priority, standard, flash priority

Flash Exposure

Compensation

±3 stops in 1/3- or 1/2-stop increments

Continuous flash

control

E-TTL each shot
E-TTL locked after first shot in sequence

Drive System

Drive Modes and Continuous Shooting Speed

Drive Modes	Operating Modes	Mechanical Shutter	Electronic 1st curtain	Electronic shutter
Single Shooting		Yes	Yes	Yes
High-speed Continuous + Shooting*¹	Mode A*²	Approx. 12 shots/sec.		Approx. 20 shots/sec
	Mode B	Approx. 9.2 shots/sec.
	Mode C	Approx. 6.8 shots/sec.
High-speed Continuous shooting	Mode A*²	Approx. 6.0 shots/sec.	Approx. 8.0 shots/sec.
	Mode B	Approx. 5.1 shots/sec.	Approx. 6.0 shots/sec.
	Mode C	Approx. 3.8 shots/sec.	Approx. 4.9 shots/sec.
Low-speed Continuous Shooting		Approx. 3.0 shots/sec.
Self-timer:10 sec / remote control		Yes
Self-timer:2 sec / remote control		Yes

Continuous shooting speed is lower under certain shooting and measurement conditions: shutter speed, aperture value subject conditions, brightness, type of lens, timing when internal memory becomes full (temporarily disables shoot- ing)
- Mechanical / electronic 1st curtain: use of flash, anti-flicker shooting: Enable, Dual Pixel RAW shooting- Enable, type
  of battery, battery level, temperature, use of a battery grip, use of WFT, use of built-in Wi-Fi.
- Electronic shutter: State of aperture in continuous shooting

* With Certain lenses, zooming during continuous shooting with electronic shutter may cause changes in exposure even at the same f/number.

2. Automatically switches among modes A (drive mode icon lit in green), B (drive mode icon lit in white), and C (drive mode icon flashing in white).

* For flash shooting, values for AE, flash metering, and WB do not change after the first shot.

HDR Shooting

HDR Shooting (HDR PQ)

Disable / Enable

Photo HDR PQ

Recording format	Bit depth	Color sampling method	HDR specification
HEIF	10 bit	YCbCr 4:2:2	ITU-R BT.2100 (PQ)

Movie HDR PQ

Recording format	Bit depth	Color sampling method	HDR specification
mp4	10 bit	YCbCr 4:2:2	ITU-R BT.2100 (PQ)

Continuous HDR Shooting (still images)

1 shot only (3 shots taken, one finished HDR image produced in-camera — camera then reverts to normal shooting)
Continuously (HDR mode remains active, after first finished HDR image is produced in-camera)

Video Shooting

Shooting Times

Resolution and Frame Rate	Mode	Approx. shooting time (23°C / 73°F)*¹	Recommended scene
4K 60p	94% sensor width (5.1K oversampling)	30 min	Independent films shooting action or with the option of slow motion at high resolution.
4K 60p	APS-C Crop	35 min*³	Independent films shooting action at high resolution with the need for additional reach for sports or wildlife or tighter crops.
4K 30p	94% sensor width (5.1K oversampling)	40 min*³	General purpose

*¹ Time available for continuous shooting in 23°C / 73°F environment, from a cold start. If the camera is in LV mode standby before shooting or the ambient temperature is high, the shooting time may be shorter.
*² Recording stops at 7minutes and 30seconds for high frame rate video. Indicates the time when recording can be resumed immediately.
*³ Recording is limited to 29 minutes 59 seconds. Indicates the time when recording can be resumed immediately.

Estimated Camera Recovery Time

Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution. The time until full record time is available will vary with ambient temperature.

Resolution and Frame Rate	Waiting period (minutes) (23°C / 73°F)	Approximate maximum recording time after waiting period (minutes)
4K 60p	10	5

File Format

Normal Movies

	Canon Log
	OFF		ON
HDR PQ	OFF	ON	OFF
Container format	MP4
Bit depth	8 bit	10 bit
Compression	H.264 / MPEG-4 AVC	H.265 / HEVC
Video signal recording range	Full range (0-255)	Full range (0-1023)	Full range (128-1016)
Color sampling method	YCbCr 4:2:0	YCbCr 4:2:2
Color Matrix	Rec.ITU-R BT.709	Rec.ITU-R BT.2020	Rec.ITU-R BT.709/ BT.2020
Audio	IPB	AAC / Linear PCM*
	IPB (light)	AAC

* Selection of AAC and Linear PCM is supported [C.Fn 4-2: Audio compression]

Estimated Recording time, Movie Bit Rate and File Size

H.264/AVC (Canon Log: Off, HDR PQ: Off)

Video Recording Size

Total Recording Time (approx.)

Bit Rate/File Size

(approx.)

8 GB

32 GB

128 GB

4K UHD

59.94 fps

IPB

(Standard)

4 min.

18 min.

1 hr. 13 min.

230 Mbps

1656 MB/min.

29.97 fps

23.98 fps

IPB

(Standard)

8 min.

35 min.

2 hr. 20 min.

120 Mbps

869 MB/min.

4K UHD

(Time-lapse

movie)

29.97 fps

ALL-I

2 min.

9 min.

36 min.

470 Mbps

3362 MB/min.

Full UHD (High Frame Rate movie)

119.88 fps

IPB

(Standard)

8 min.

35 min.

2 hr. 2 min.

120 Mbps

858 MB/min

Full HD

59.94 fps

IPB

(Standard)

17 min.

1 hr. 9 min.

4 hr. 37 min.

60 Mbps

440 MB/min.

29.97 fps

23.98 fps

IPB

(Standard)

33 min.

2 hr. 15 min.

9 hr. 1 min.

30 Mbps

226 MB/min.

29.97 fps

IPB (Light)

1 hr. 18

min.

5 hr. 15 min.

21 hr. 0 min.

12 Mbps

97 MB/min.

Full HD (Time-lapse movie)

29.97 fps

ALL-I

11 min.

47 min.

3 hr. 9 min.

90 Mbps

644 MB/min.

Full HD

(HDR movie)

29.97 fps

IPB

(Standard)

33 min.

2 hr. 15 min.

9 hr. 1 min.

30 Mbps

226 MB/min.

Estimated Recording Time, Continued.

H.265/HEVC (Canon Log: On or HDR PQ: On)

Video Recording Size

Total Recording Time (approx.)

Bit Rate/File Size

(approx.)

8 GB

32 GB

128 GB

4K UHD

59.94 fps

IPB

(Standard)

3 min.

12 min.

49 min.

340 Mbps

2443 MB/min.

29.97 fps

23.98 fps

IPB

(Standard)

6 min.

24 min.

1 hr. 39 min.

170 Mbps

1227 MB/min.

4K UHD

(Time-lapse

movie)

29.97 fps

ALL-I

2 min.

9 min.

36 min.

470 Mbps

3362 MB/min.

Full HD (High Frame Rate

movie)

119.88 fps

ALL-I

5 min.

23 min.

1 hr. 34 min.

180 Mbps

1287 MB/min

Full HD

59.94 fps

IPB

(standard)

11 min.

46 min.

3 hr. 6 min.

90 Mbps

655 MB/min.

29.97 fps

23.98 fps

IPB

(standard)

22 min.

1 hr. 31 min.

6 hr. 6 min.

45 Mbps

333 MB/min.

29.97 fps

IPB (Light)

37 min.

2 hr. 30 min.

10 hr. 3 min.

28 Mbps

202 MB/min.

Full HD (Time-

lapse movie)

29.97 fps

ALL-I

7 min.

31 min.

2 hr. 6 min.

135 Mbps

966 MB/min.

* Bit rate indicates video output only, audio is not included.

* Movie recording is interrupted if the maximum recording time per movie, 29 min. 59 sec., is ex- ceeded.

(Time is different for High Frame Rate movies.)

* Sound is not recorded for approx. the last two frames when the compression method for movie recording quality is IPB or IPB Light (audio: AAC) or [Audio compression] is set to [Enable].

* The video and sound may be slightly out of sync when movies are played back in Windows.

Card Performance Requirements

Movie Recording Size

SD Card

Resolution

Frame rate (fps)

Compression Method

H.264/ MPEG-4 AVC (Canon Log: OFF, HDR PQ: OFF)

H.264/ MPEG-4 AVC (Canon Log: ON, HDR PQ: ON)

4K UHD

59.94

IPB (Standard)

UHS-I, UHS Speed Class 3 or higher

UHS-II, Video Speed Class 60 or higher

29.97

23.98

IPB (Standard)

UHS-I, UHS Speed Class 3 or higher

Full HD

119.88

IPB (Standard)

59.94

IPB (Standard)

SD Speed Class 10 or higher

UHS-I, UHS Speed Class 3 or higher

29.97

23.98

IPB (Standard)

SD Speed Class 6 or higher

29.97

IPB (Light)

SD Speed Class 4 or higher

4K UHD

(Time-lapse

movie)

29.97

ALL-I

Read speed of 60 MB/s or higher

Full HD (Time-lapse movie)

29.97

ALL-I

Read speed of 30 MB/s or higher

* When cropped movie recording and Movie digital IS are disabled.

Video AF

Dual Pixel CMOS AF; Movie Servo AF available in AF Menu

Exposure Compensation	±3 stops in 1/3- or 1/2-stop increments
LCD Screen
Type	TFT color, liquid-crystal monitor
Monitor Size	3.0-inch (screen aspect ratio of 3:2) 2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)
Dots	Approx. 1.62 million dots
Coverage	Approx. 100% vertically/horizontally
Brightness Control	Manually adjustable to one of seven brightness levels
Touch-screen Operation	Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified view
Coating	Clear View LCD II Anti-smudge coating applied. Anti-reflection coating not applied.
Interface Languages	29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)
Playback
Display Format
		Item	Still Photo	Movie
		Magnify zoom display	1.5x–10x (15 levels)	-
		AF point display	Yes	-
		Grid display	Off / 3×3 / 6×4 / 3×3+diag	-
		Rating	OFF / 1 to 5 Stars Select images / Select range / All images in folder / All images on card / All found images
		Image Search	Search conditions Rating / Date / Folder / Protect / Type of file
		Protect	Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images
		Shooting information display	No information display / Basic information display / Detailed shooting information display

Highlight Alert	The white areas with no image data will blink.
Histogram	Brightness and RGB
Quick Control Function
Function	The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.
Image Protection and Erase
Protection	Single image (select image) Select range All images in a folder All images on card Image browsing and image search can be based on ratings. Ratings-based image selections also possible with DPP. All found images (only during image search)

Erase

Except protected images

Select images to erase
Select range
All images in folder
All images on card
All found images (only during image search)

Direct Printing

Compatible Printers

Not supported

DPOF: Digital Print Order Format

DPOF

Compliant to DPOF Version 1.1

Wi-Fi®

Standards Compliance

IEEE 802.11b/g/n

Transmission Method

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

Transition Frequency (Central Frequency)

2.4 GHz band (5 GHz Wi-Fi not supported)

Frequency: 2412 to 2462 MHz

Channels: 1 to 11 channels

Connection Method

Camera access point mode
Infrastructure mode

Security

Connection Method		Encryption
	Authentication	Encryption	Key Format and Length
Camera Access Point	WPA2-PSK	AES	ASCII 8 characters
	Open	Disable
Infrastructure	Open	WEP	Hexadecimal 10 digits Hexadecimal 26 digits ASCII 5 characters ASCII 13 characters
		Disable
	Shared key	WEP	Same as WEP above
	WPA-PSK	TKIP AES	Hexadecimal 64 digits ASCII 8–63 characters
	WPA2-PSK

Communication with a Smartphone

Images can be viewed, controlled, and received using a smartphone.

Remote control of the camera using a smartphone is possible depending on the Camera

Connect specifications.

Images can be sent to a smartphone.

Remote Operation Using EOS Utility

The camera can be controlled via Wi-Fi®, with Canon EOS Utility software installed in a compatible Mac or Windows computer.

Print from Wi-Fi® Printers

Not supported.

Send Images to a Web Service

image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image.canon servers.

From image.canon, images can be sent to specific social media and 3rd-party cloud image services.

Bluetooth®

Standards Compliance

Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)

Transmission Method

GFSK modulation

Customization

Available Functions

Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials

Custom Controls

Customizable Buttons

Shutter button

Movie button

MODE button

AF-ON button

AE lock button

AF point button

Depth of field preview button

Lens AF stop button

Multi-function button

LCD panel illumination button

Set button

Multi-controller

Customizable Dials

Main dial

Quick control dial 1 & 2

Control ring

My Menu Registration

Up to six top-tier menu items and Custom Functions can be registered.

Up to five My Menu tabs can be added.

My Menu tab overall operations

Adding a tab

Deleting tabs in a batch

Deleting all tab items

Setting the menu display

My Menu tab detailed operations

Selecting a registered item

Sorting registered items

Deleting selected registered items

Deleting registered items in a batch

Deleting tabs

Changing a tab name (16 ASCII characters)

Interface

USB Terminal

Equivalent to Hi-Speed USB (USB 3.1 Gen 2)

For PC communication
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.

HDMI Out Terminal

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible

Images can be displayed through the HDMI output and on screen at the same time.
Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Microphone terminal

3.5mm diameter stereo mini jack

Headphone terminal

Compatible with 3.5mm diameter stereo mini-plug

Power Source

Battery

Canon LP-E6NH battery pack (also compatible with LP-E6N and LP-E6 battery packs)

With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera.

Optional Battery Grip

Compatible with Canon Battery Grip BG-R10

(Accepts one or two LP-E6NH, LP-E6N, or LP-E6 battery packs)

Battery Check

Automatic battery check when the power switch is turned ON. Displayed in 5 levels in viewfinder, and on LCD screen.

Battery info display in Set-up Menu:

Remaining capacity percentage
Shutter count, on current battery charge
Recharge performance (battery's ability to hold charge; displayed in 3 levels)

Start-up Time

Approx. 0.4 sec.

Based on CIPA testing standards.

Dimensions and Weight

Dimensions
(W x H x D)

Approx. 5.45 x 3.84 x 3.48 in. / 138 x 97.5 x 88.4mm

Based on CIPA standards.

Weight

Approx. 1.5 lbs. / 680g (including battery, SD memory card; without body cap) Approx. 1.3 lbs. / 598g (body only; without battery, card or body cap)

Operating Environment

Working Temperature Range

32–104°F / 0–+40°C

Working Humidity Range

85% or less

What's in the Box

EOS R6 Camera Body
Battery Pack LP-E6NH
Battery Charger LC-E6
Wide Strap
Camera Cover R-F-5 (not shown)

* Effectiveness varies depending on the subject. In some cases, dogs, cats or birds may not be detected, while some animals other than dogs, cats or birds may be detected.
** When combined with certain IS lenses such as the RF24-105mm F4 IS L USM, or when used with certain non-IS lenses as well.
^1 Display may be grainier.
^ Compatible with iOS® versions 9.3/10.3/11.2-11.4/12.4/13.2, Android™ smartphone and tablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
^^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
