PowerShot GOLF Overview

Monocular Camera-equipped Telescopic Laser Rangefinder

FDA 21 CFR Part 1040.10: Class I Laser Product

Approximately 7.0 – 800 yds (6.4 – 732 m)

(Range may be limited by object measured or environment)

Less than 100 yds (91 m) – +/- 1.0 yd. (0.91 m)

100 yds. (91 m) or more – +/- 2.0 yd. (1.83 m)

(Straight-line measurement, based on Canon testing standards)

0.5 yds (0.5 m)

Approx. 0.8 Sec.

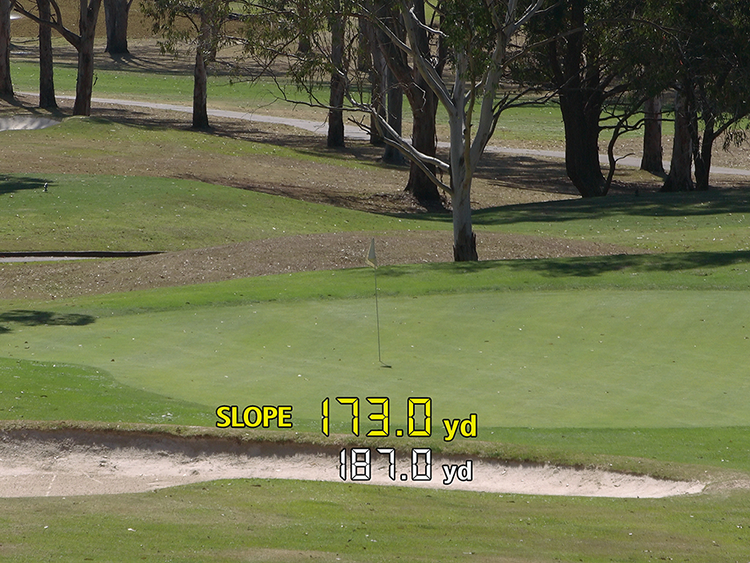

• Slope-adjusted Measurement
• Straight-line Distance

(with [SLOPE] set to [ON]: Horizontal distance +/- difference in elevation)

(with [SLOPE] set to [Off]: Playback function and image delete function are restricted)

Built-in

Available

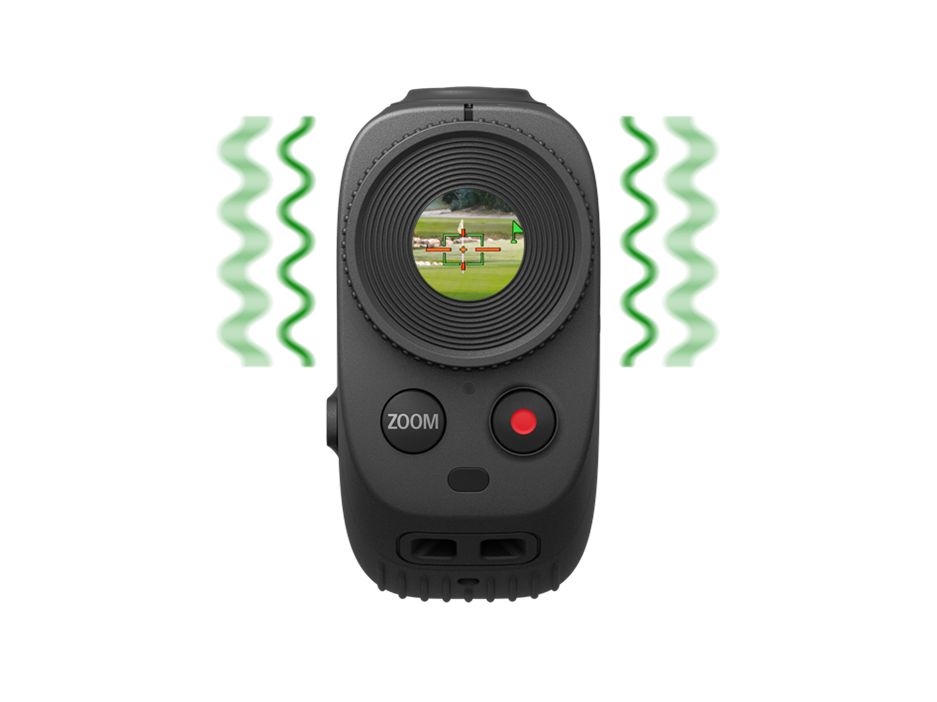

(Holding down the measure button halfway fires the laser for approx. 8 sec. after which flagpole-locking detects the target of measurement)

Available

(Selecting [Ranging+Photo] from the [Mode] menu enables still/video recording with rangefinder results superimposed over the image)

1/3-inch CMOS Sensor

EFFECTIVE: Up to approx. 11 megapixels

TOTAL: approx 13.5 megapixels

4:3 (Horizontal: Vertical)

51.0mm (equivalent to approx. 410mm (35mm equivalent))

Approx. 4.4 yd (approx. 4 m) to infinity

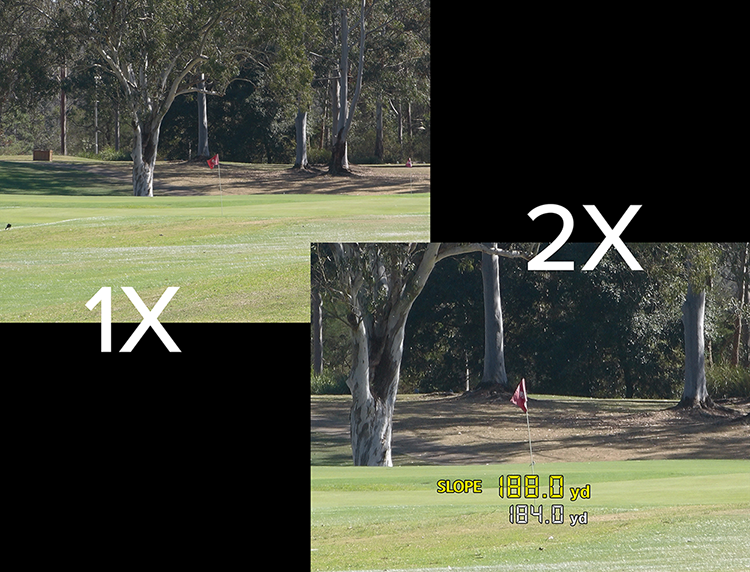

Enables approx. 2X magnification

When equivalent to approx. 410mm – 6X

When equivalent to approx. 820mm – 12X (using digital zoom)

f/3.9 (no aperture control)

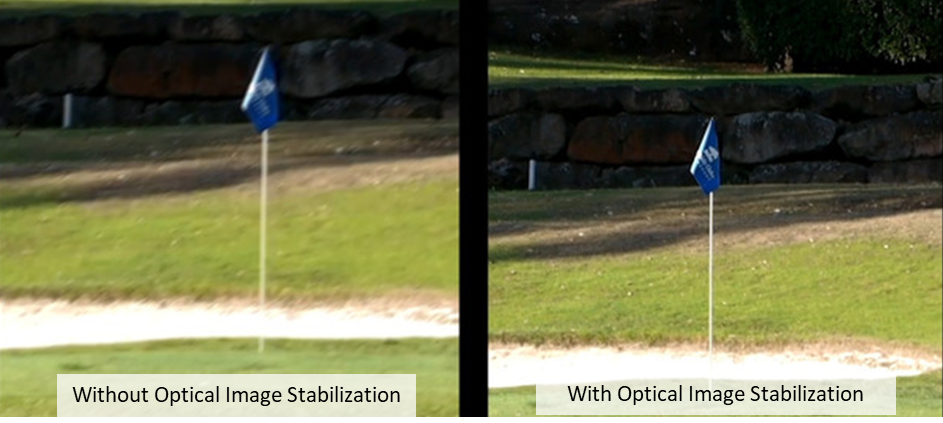

Lens Shift System - 2-axis correction (pitch/yaw)

(Stabilization cannot be deactivated.)

Not Available

microSD / microSDHC / microSDXC memory cards

* UHS-I Compatible

Displayed in the viewfinder

Normal (Logical) Formatting (low-level formatting not available)

Available

Not Supported

Compliant with Design rule for Camera File System 2.0 and Exif 2.31

(Time difference information supported)

Folders Created Automatically

(selection of folders on cards not available)

Not supported

Auto Reset

(when cards are replaced, the numbering is reset to start from 0001. If the new card already contains images the existing numbering is continued)

Container Format: MP4

Video: H.264 / MPEG-4 AVC

Audio: MPEG-4 AAC -LC (Stereo)

Full HD 1920x1080 (Movie recording size not adjustable)

(Lower image quality when recording at equivelant of approx. 820mm due to digital zoom).

When set to NTSC: 30 fps / 24 fps

When set to PAL: 25.00 fps

59 Seconds

8 GB: Max 33 min.

32 GB: Max 132 min.

128 GB: Max 530 min.

microSD FAT12/16: Max 2 GB

microSDHC FAT32: Max 4 GB

microSDXC exFAT: Unlimited

SD Speed Class 6 or Higher

NTSC/PAL

Built-in Stereo Microphones

(No external microphone IN terminal provided).

Auto

OLED Color Electronic Viewfinder

0.39 Inch

Width: 1024 Dots

Height: 768 Dots

Total: Approx. 2,360,000 Dots

Approx. 100% (With eyepoint of approx. 20 mm)

Not supported

59.954 fps

Contrast Detection

Enable / Disable

(AF is active during movie recording under all settings.)

Not supported

Shown in the viewfinder when the shutter button is pressed halfway

Green Frame: In Focus

Red Frame: Out of Focus

Autoexposure Shooting (Shooting mode selection not available)

Center-weighted average metering (Metering mode cannot be changed)

Still and Movie recording: Controlled automatically (ISO 100-3200)

+/- 3 stops in 1/3-stop increments

Shutter Speed, ISO Speed

Electronic Shutter, using the image sensor

Controlled Automatically (1/8000 to 1/30 Sec.)

Single Shooting

Not Provided

In Electronic Viewfinder

On a computer or Smartphone

Play

Skip backward (approx. 4 sec.)

Previous frame

Next Frame

Skip Forward (approx. 4 sec.)

Select and erase images/all images on card

Green Lit/Blinking: Accessing Card

Orange Lit: Charging in Progress

Orange Off: Charging Completed

Blinking: Straight-line distance

Off: Straight-line distance / Slope-adjusted distance

Shown in the electronic viewfinder

Rangefinding

Shooting

Playback

Function Settings

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukrainian, Norwegian, Swedish, Spanish, Russian, Turkish, Simplified Chinese, Traditional

Available

USB Type-C

Equivalent to Hi-Speed USB (USB 2.0)

For charging the built-in battery and powering the rangefinder

(Recognized as a USB device when connected to computers; images on the rangefinder memory)

Not Provided

Not Provided

Honolulu, Anchorage, Los Angeles, Denver, Chicago, New York, Caracas, New Foundland, São Paulo, Fernando de Noronha, Azores, London, Paris, Cairo, Moscow, Tehran, Dubai, Kabul, Karachi, Delhi, Kathmandu, Dacca, Yangon, Bangkok, Beijing/Singapore, Tokyo/Seoul, Adelaide, Sydney, Solomon Islands, Wellington, Chatham Islands, Samoa

Available (in 15-minute Increments)

Available

Same as battery that powers the rangefinder

Built-in rechargeable Lithium-ion battery

3.7 V, 1000 mAH

Approx. 300 charging/usage cycles

5 V 0.5 A or more (5 V 1 A or more recommended)

Supported

Supported

Approx. 2 hr. 30 min.

(The charging time required and the amount charged vary depending on ambient temperature and remaining capacity).

Approx. 200 shots

(With a new, fully charged battery at room temperature (73ºF))

Approx. 1 hr. 10 min.

(With a new, fully charged battery at room temperature (73ºF))

Approx. 1 hr. 40 min.

(With a new, fully charged battery at room temperature (73ºF))

Battery level automatically checked and indicated in a 4-level display when the unit is powered on.

Auto Power off: 5 sec. / 10 sec. / 15 sec.

Viewfinder off: 1 min. / 3 min.

Polycarbonate and Stainless Steel

Black

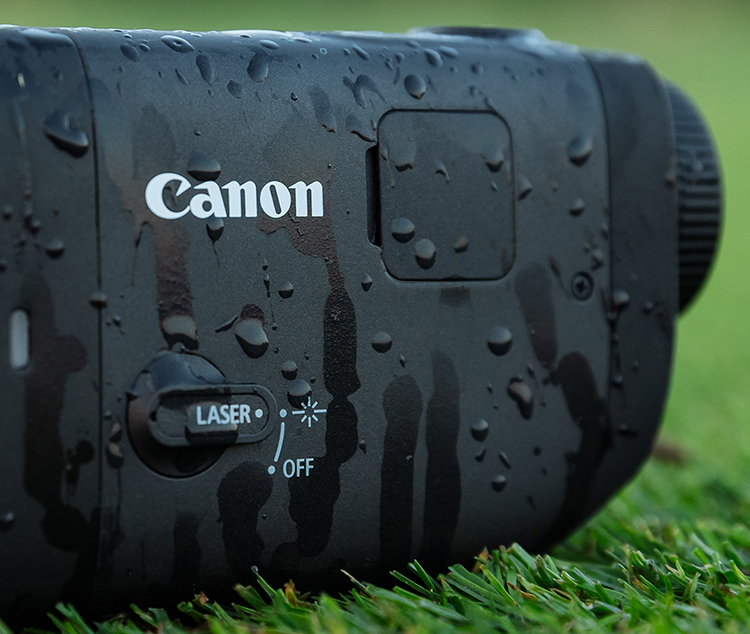

Equivalent to IPX4

(Not dustproof)

Approx. 1.2 x 2.3 x 3.6 in. (31.0 x 58.9 x 91.2 mm)

Approx. 5.3 oz (151 g)

32-104ºF (0-40ºC)

10-90%
